VS Series Valve Manifold

VS Series Overview

The Norgren VS Series gives you the versatility to choose the features you need with the modularity to easily expand and add accessories.

By combining flexibility and Swiss-engineered quality, Norgren has created a no-compromise valve range with unlimited ability.

Whether using a simple Multi-pole, complex Fieldbus, PROFINET, EtherNet/IP, or IO-Link system expanding the size of your valve manifold to match the changing demands of your equipment is a simple “plug-and-play”
experience. The plug-in Printed Circuit Board (PCB) technology takes only seconds to
install and additional sub-bases can be attached with only two screws.

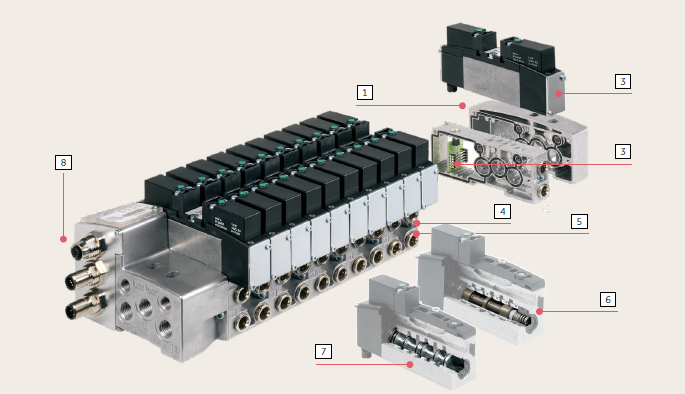

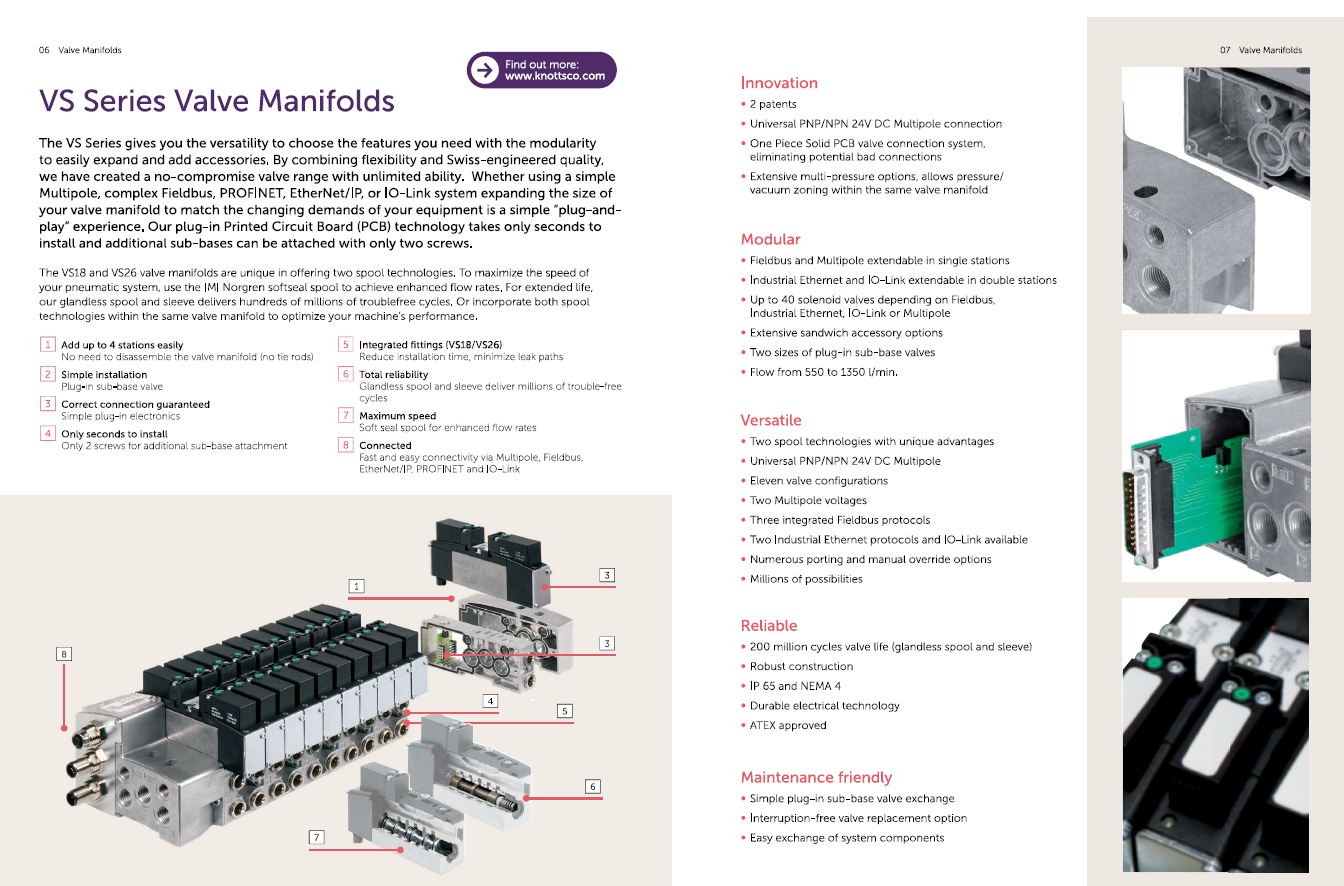

Diagram

1.  Add up to 4 stations easily -
No need to disassemble the valve manifold (no tie rods)

2.   Simple installation -
Plug-in sub-base valve

3.  Correct connection guaranteed -
Simple plug-in electronics

4.  Only seconds to install -
Only 2 screws for additional sub-base attachment

5.  Integrated fittings (VS18/VS26) -
Reduce installation time, minimize leak paths

6.  Total reliability -
Glandless spool & sleeve deliver millions of trouble-free cycles

7.  Maximum speed -
Soft seal spool for enhanced flow rates

8. Connected -
Fast & easy connectivity via Multipole, Fieldbus, EtherNet/IP, PROFINET & IO-Link

Plug-in Technology

Pneumatics:
• Two sizes, 18mm & 26mm width
• Up to 20 stations (40 solenoids) depending on protocol
• VS18 & VS26 comply with ISO 15407-2 standard
• Simple multi-pressure functionality
• 2 x 3/2 valves in 1 body
• 2 x 2/2 valves in 1 body (VS18/VS26)

Multipole:
• 24V DC & 115V AC voltage options
• Wide range of electrical connections
• Field expandable up to 4 additional stations
• 1 universal 24V DC PCB for both PNP/NPN

Fieldbus:
• Compact size through integrated electronics
• Field expandable up to 4 additional stations
• Wide range of protocols offered

Industrial Ethernet:
• Ultimate flexibility in machine design
• Standardized platform for networking of devices
• Real-time data transmitted simultaneously
over a common medium
• Large network coverage & almost
unlimited number of users
• Large amounts of data transferable
• Equal bus access authorization
• Quick & easy commissioning

Product Highlights

Innovation -
• 2 patents
• Universal PNP/NPN 24V DC Multipole connection
• One Piece Solid PCB valve connection system, eliminating potential bad connections
• Extensive multi-pressure options, allows pressure / vacuum zoning within the same valve manifold

Modular -
• Fieldbus & Multipole extendable in single stations
• Industrial Ethernet & IO-Link extendable in double stations
• Up to 40 solenoid valves depending on Fieldbus, Industrial Ethernet, IO-Link or Multipole
• Extensive sandwich accessory options
• Two sizes of plug-in sub-base valves
• Flow from 550 to 1350 l/min.

Versatile -
• Two spool technologies with unique advantages
• Universal PNP/NPN 24V DC Multipole
• Eleven valve configurations
• Two Multipole voltages
• Three integrated Fieldbus protocols
• Two Industrial Ethernet protocols & IO-Link available
• Numerous porting & manual override options
• Millions of possibilities

Reliable -
• 200 million cycles valve life (glandless spool & sleeve)
• Robust construction
• IP 65 & NEMA 4
• Durable electrical technology
• ATEX approved

Maintenance friendly -
• Simple plug-in sub-base valve exchange
• Interruption-free valve replacement option
• Easy exchange of system components

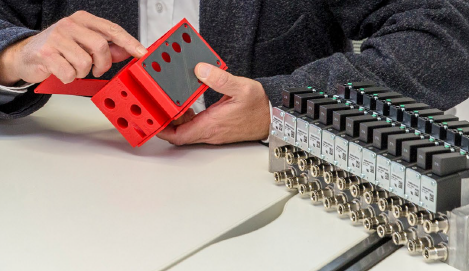

VS Series gives you options

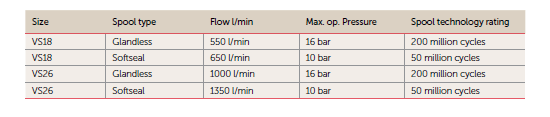

The VS18 and VS26 valve manifolds are unique in offering two spool technologies.

To maximize the speed of your pneumatic system and have a higher flow rate, use the IMI Norgren softseal spool to achieve enhanced flow rates.

For maximum reliability and extended life, our glandless spool and sleeve delivers hundreds of millions of trouble-free cycles. Or incorporate both spool
technologies within the same valve manifold to optimize your machine’s performance.

Glandless or softseal spool valves – the right technology, for every application.

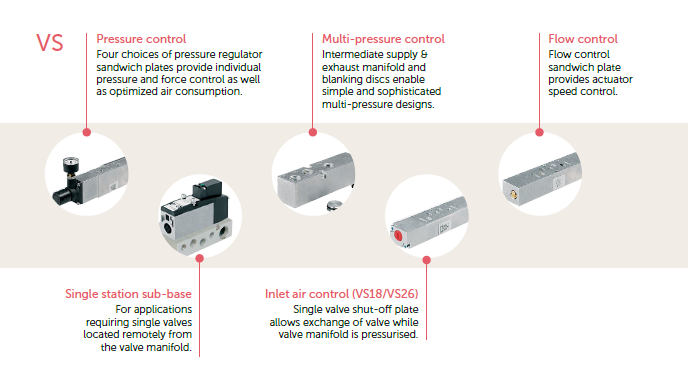

Accessories:

A number of accessories and spare elements are available for our valve manifold ranges.

VS Series Quick Guide - VS18 & VS26

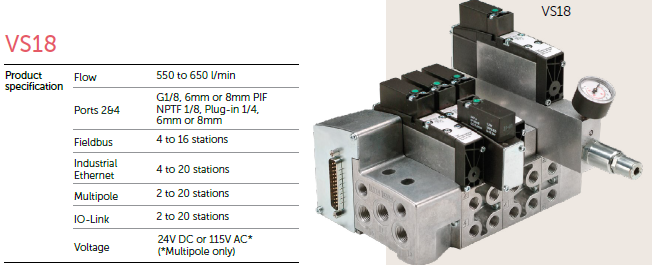

VS18:

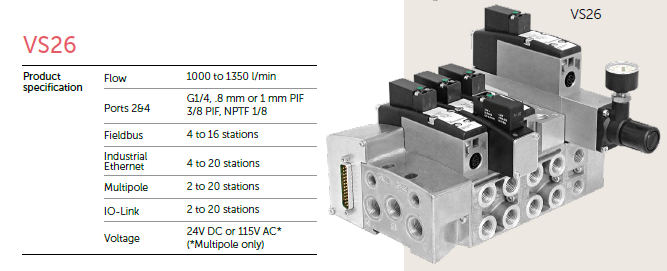

VS26:
