Excelon Plus Air Preparation

Excelon Plus Series Overview

Tamper resistant features are built in as standard, with padlock features on the filter-regulator, regulator and shut-off valves.

A rotating safety shut-off valve makes it easy to isolate the system with no reduction in performance; a unique double safety bowl lock, with an audible bowl clip plus a safety detent when pressurized, makes it impossible to remove the bowl when in use.

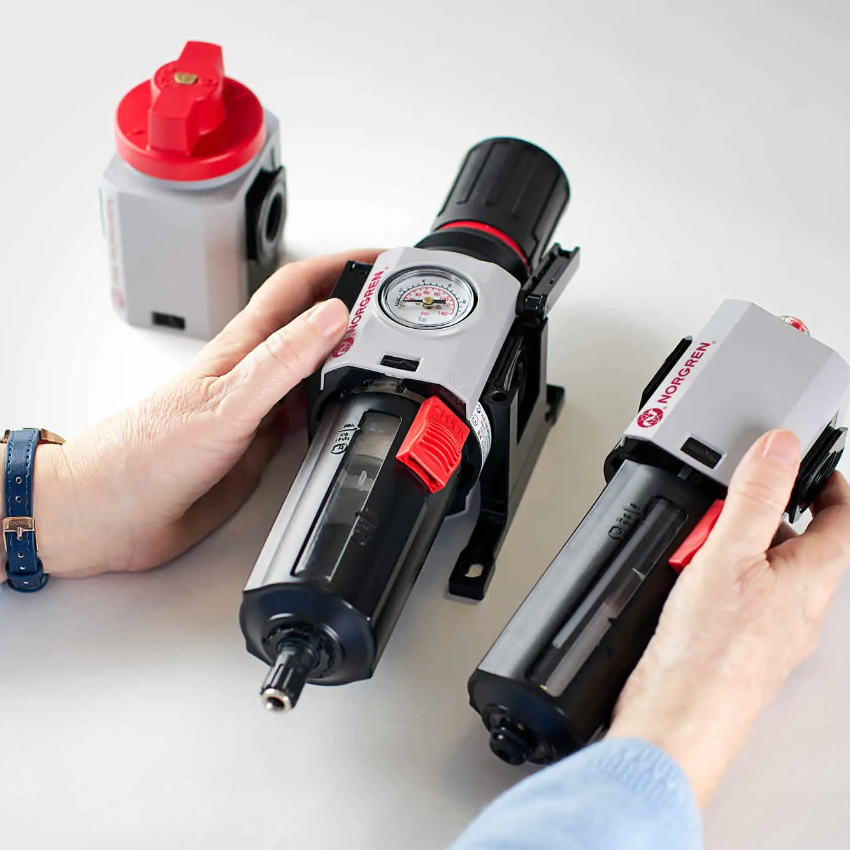

The new and improved filter maintenance system allows the filter element assembly to be removed with the bowl, enabling faster and cleaner servicing. It also features our unique Quikclamp system locking Excelon Plus modules together. With the new safety and functionality features and a compact and lightweight design with no compromise on robustness, Excelon Plus helps keep customers’ machines running smoothly across several industries including factory automation, steel production, petrochemical and the rail industry.

General Specifications

• Two body sizes: 82 series and 84 series
• Port sizes 1/4”, 3/8”, 1/2” or 3/4”
• Thread type PTF or ISO G
• Fluid: Compressed air
• Maximum inlet pressure:
  • Guarded polycarbonate bowl 145 psi (10 bar)
  • Metal bowl 290 psi (20 bar) (247 psi [17 bar] for 1/4” range)
• Maximum temperature:
  • Polycarbonate bowl 140º F (60ºC)
  • Metal bowl 149º F (65ºC)
• All internal and external surfaces are protected with an electrophoretic paint coating, providing excellent corrosion and chip resistant protection
