VR Series

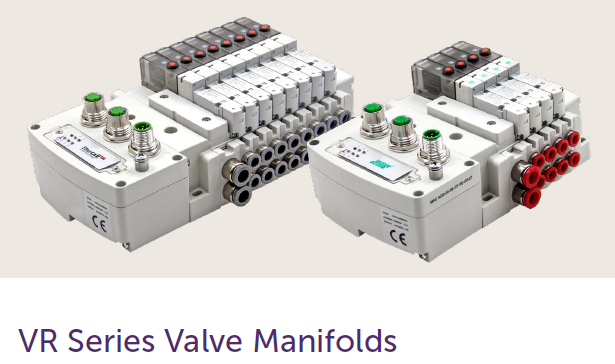

VR Series Overview

The Norgren VR series is the latest connected product solutions for 10 and 15mm valve island body sizes. Offering a series of features and benefits, the new solution takes flexibility and modularity to new levels. A simple plug-in, sub-base style design allows for valves to be easily exchanged for speedy installation and system expansion as well as supporting ongoing maintenance requirements.

With established expertise in the market, Norgren has been providing valve manifold solutions for 20 years. The enhanced VR series builds upon this heritage by creating a simple, high performing and connected solution for industrial automation and motion control valve island requirements that are ideal for food & beverage, machine tools, mechanical, packaging, materials handling and paper sectors.

Using proven technology to deliver reliability of operation and user confidence, as well as enhanced connectivity options, the new Norgren VR10 and VR15 valve islands also include:

• Integrated silencers and fittings with simple replacement capability

• A range of connection orientation options for both horizontal and vertical installation

• Compact and lightweight metal body for use in challenging environments

• Easy maintenance, with a simple plug-in sub-base valve exchange and interruption-free valve replacement options

Customers can also use the Norgren online configuration tool to customize the valve manifold to best suit their needs for valves and complementing fixtures and accessories to deliver a bespoke solution.

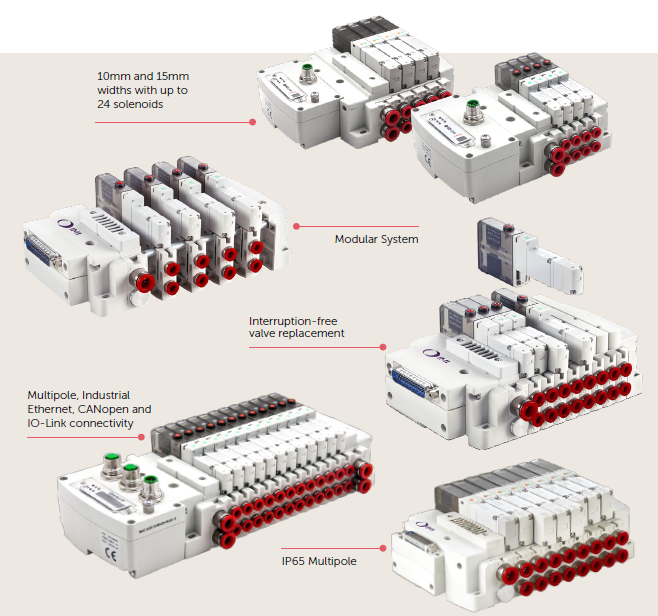

Product Highlights

• Modular – A modular system offering a wide range of configurated options
• Flexible – Available in 10mm and 15mm with up to 24 solenoids with a wide range of valve functions
• Reliable – Using proven technology for long life over 30 million cycles

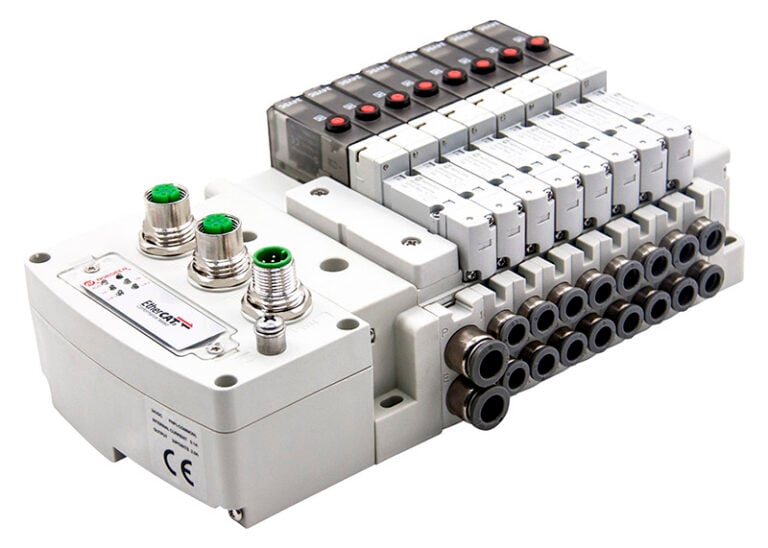

• Connected – Fast and easy connectivity via Multipole, EtherNet/IP, PROFINET, EtherCAT and IO-Link
• Easy Installation – No restrictions when installing as connectors can be horizontal or vertical. Valve manifold can be direct mounted or mounted on a DIN rail.
• Maintenance Friendly – Simple plug-in sub base allows for easy exchange of system components and has an interruption-free valve replacement option; and integrated silencers offer simple replacement
• Energy Saving – Low power solenoids (0.4w power consumption) with LED indicators
• Space Saving – If space is an issue, the IP40 base is available with valve slices
• Easy to Configure – Best in class online configurator

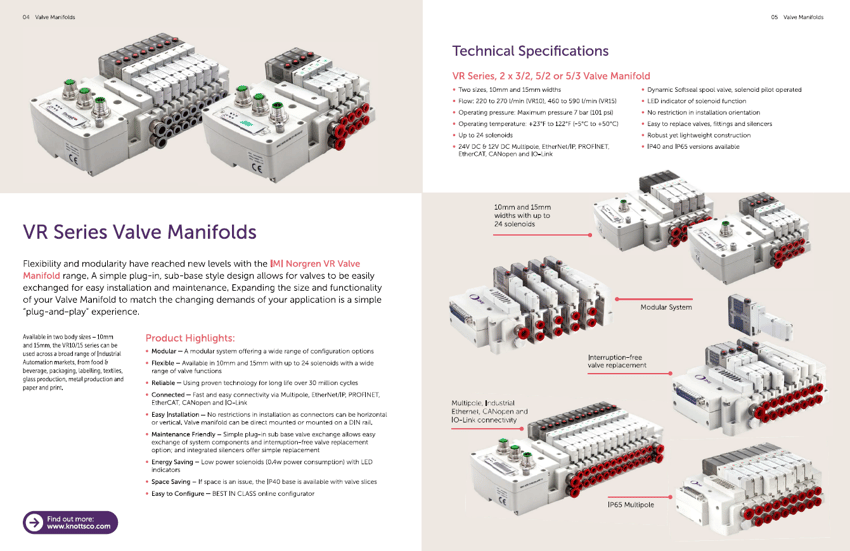

Technical Specifications

Two sizes, 10 mm and 15 mm widths Flow: 220 to 270 l/min (VR10), 460 to 590 l/min (VR15) Operating pressure: Maximum pressure 101 psi (7 bar) Operating temperature: +23°F to 122°F (-5°C to +50°C) Up to 24 solenoids 24V DC & 12V DC Multipole, EtherNet/IP, PROFINET, EtherCAT and IO-Link Dynamic softseal spool valve, solenoid pilot operated LED indicator of solenoid function No restriction on installation orientation Easy to replace valves, fittings, and silencers Robust yet lightweight construction IP40 and IP65 versions available

Certified VR Assemblies by The Knotts Company
