Compact Pneumatic Actuator

Features & Benefits

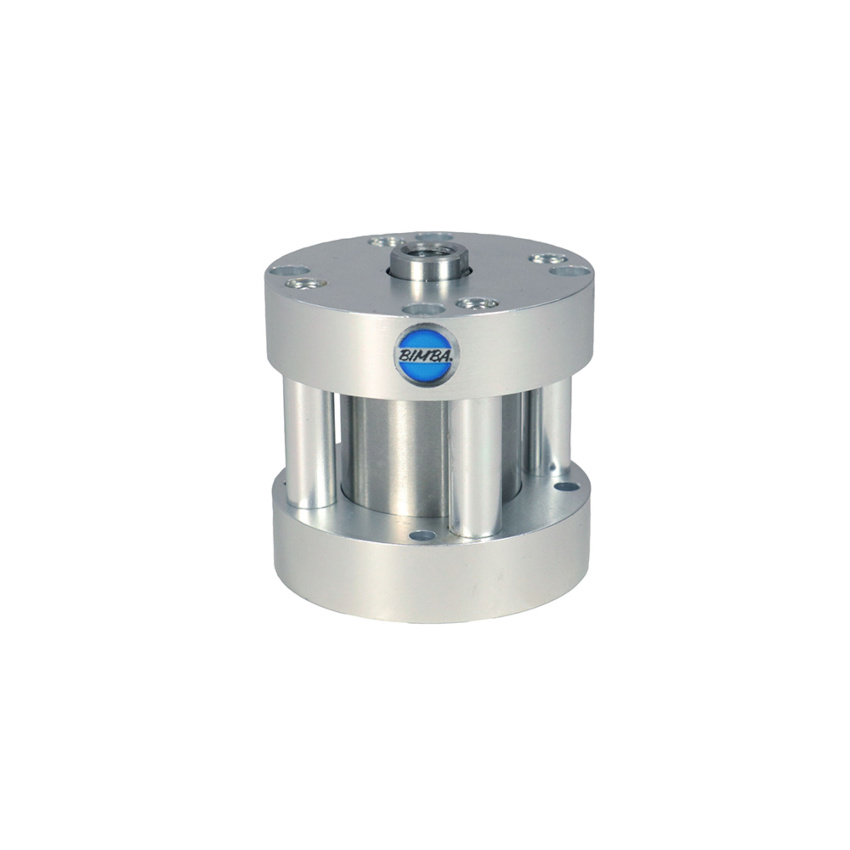

If your application is tight on space, a Bimba Flat-1® is the answer. With 19 recent design enhancements this compact and reliable cylinder is now “Blue and Improved” in each of the eight available bore sizes. The new “F Series” mounting option provides a direct interchange with a competitor's mounting pattern!

General Specifications

Permanent grease lubrication and rated for 3,000 miles of travel with L Option seals

Hard chrome plated piston rods improve rod seal life and performance

Re-engineered bumper design maximizes bumper performance and life

Optional thick-walled aluminum and composite cylinder bodies for unique applications

Additional options include low pressure hydraulics and magnetic reed switch compatibility

Multiple fail safe options and standard stainless steel fasteners at no extra charge
