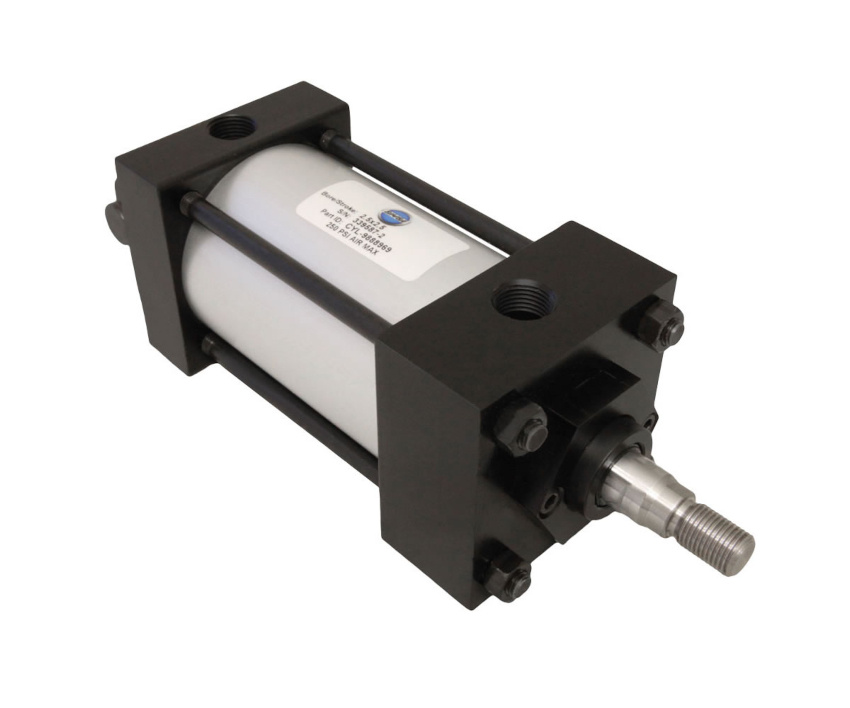

Standard Aluminum NFPA Pneumatic Cylinder

Features & Benefits

TA Series NFPA cylinders have a self alignment feature, which is a rod bushing designed to float 0.002", improving bearing surface alignment. This provides a minimum of 25% longer life than "fixed" rod bushing design. It also reduces breakaway and running friction, which improves overall actuation responsiveness. Cylinders can be customized to fit any application.

General Specifications

Precision machined components from high alloy aluminum

Maximum Operating Pressure: 250 PSI air, 400 PSI hydraulic non-shock ("TH" option)

Permanent lubrication design provides outstanding service life

Cylinders are made to order, adding standard options typically won't affect delivery times

Standard, oversized, and many special rod sizes available

Size & Measurements

Bore sizes: 1-1/2", 2", 2-1/2", 3-1/4", 4", 5", 6", 8", 10", 12"

Standard Lead Times are 5 days or less
