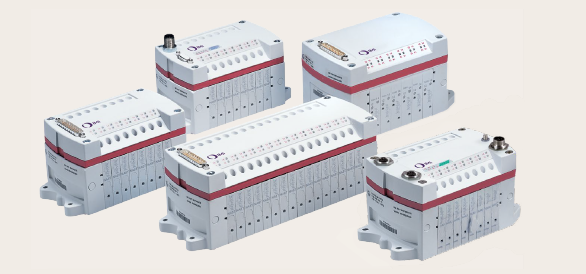

VM Series Valve Manifold

VM Series Overview

The Norgren VM Series manifolds are available in both 10mm & 15mm valve body widths and provide unsurpassed flow rates of 430 l/min and 1,000 l/min respectively.

VM10/15 offer one of the best footprint to flow ratios in the market. Offering fast and easy connectivity via individually wired, Multipole, Fieldbus*, PROFINET* or EtherNet/IP*.

You can also choose from DIN rail, through hole, panel and sub base mounting options. Valve manifolds can be configured from 2 to 20 stations (Individually Wired option above 16 stations only) with single or double solenoids and with a high number of possibilities for manual overrides and tube fitting sizes.

This results in over 15 million possible configurations. Selection, however, is simple. We provide an online configuration tool which provides you with a part number and price.  You can download your configuration in your native CAD format.

VM10

A 10 mm valve body width system valve with an unsurpassed flow rate of 430 l/min.

Its design ensures it is highly suitable for many applications across a wide range of industry sectors.

The high number of options available enables configuration of the valve manifolds to meet your exact requirements.

• Ultimate flexibility in machine design
• Standardized platform for networking of devices
• Real-time data transmitted simultaneously over a common medium
• Large network coverage & almost unlimited number of users
• Large amounts of data transferable
• Equal bus access authorization
• Fast & easy connectivity via Individually wired, Multipole, Fieldbus, PROFINET or EtherNet/IP
• Available in 8, 10, 12 & 16 stations having up to 32 solenoids

(* Fieldbus and Industrial Ethernet options only available on VM10.)

VM15

A 15 mm valve body width system valve, again providing unsurpassed flow for size, this time 1,000 l/min.

It has some of the options offered with the VM10 plus some additional multi-pressure options often required with higher flow applications.

Configuring valve manifolds to exactly match requirements is easy using our simple soft ware
configuration tool available online.

(* Fieldbus and Industrial Ethernet options only available on VM10.)

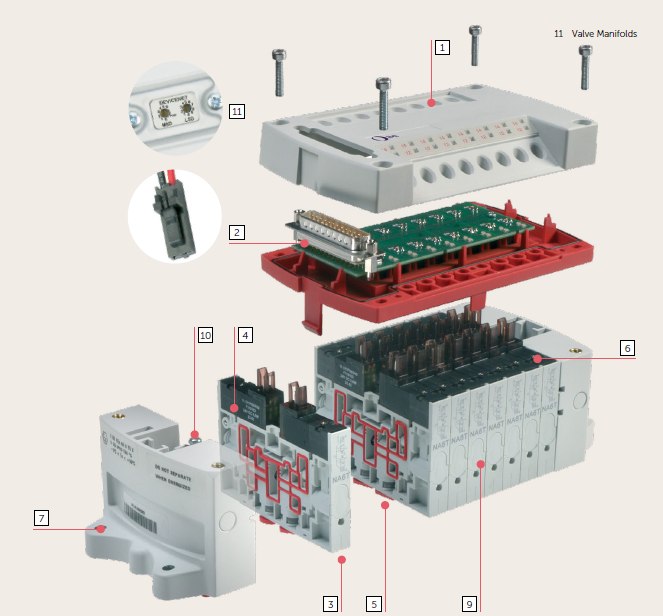

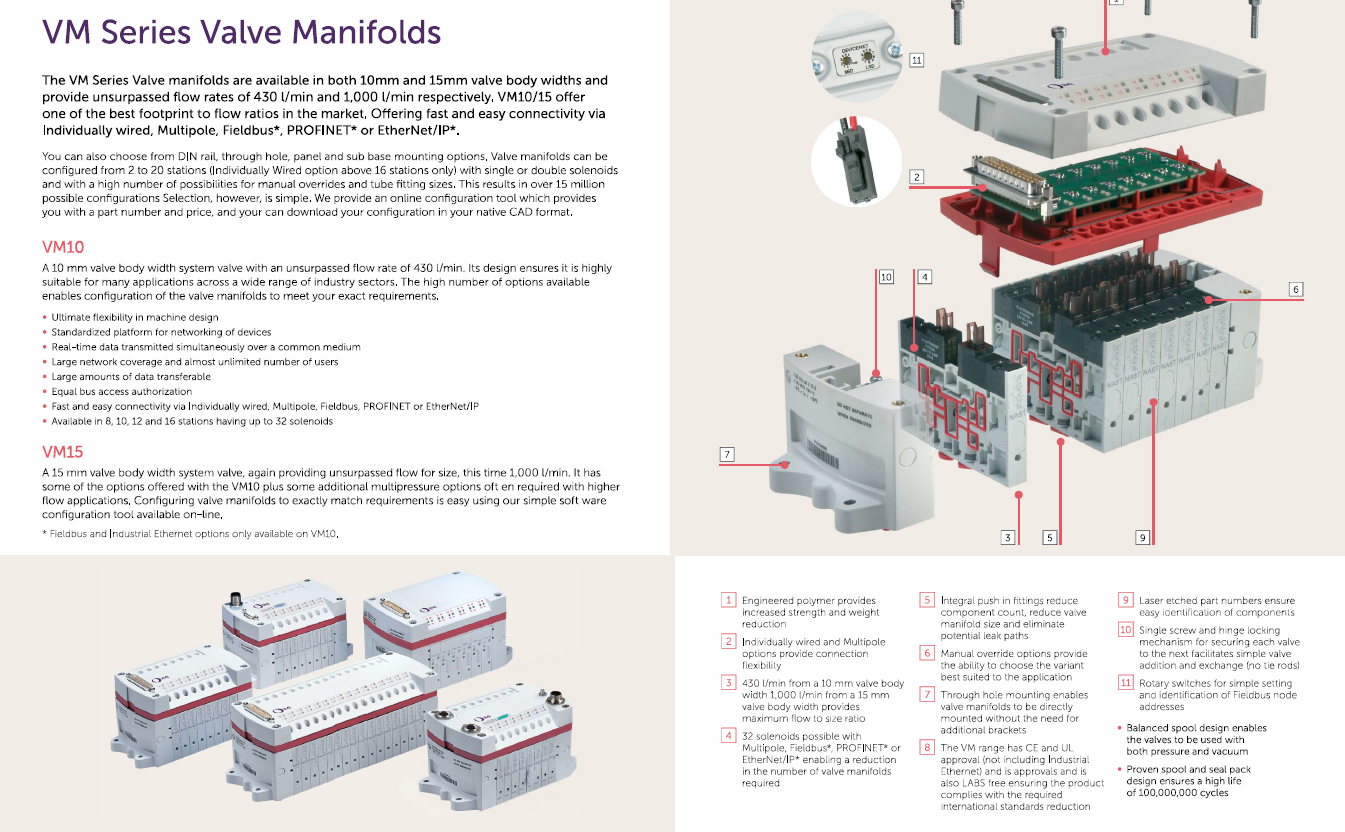

VM Series Diagram

1.  Engineered polymer provides increased strength & weight reduction

2.  Individually wired & Multipole options provide connection flexibility

3.  430 l/min from a 10 mm valve body
width 1,000 l/min from a 15 mm valve body width provides maximum flow to size ratio

4.  32 solenoids possible with Multipole, Fieldbus*, PROFINET* or EtherNet/IP* enabling a reduction in the number of valve manifolds required

5.  Integral push in fittings reduce component count, reduce valve manifold size & eliminate potential leak paths

6.  Manual override options provide the ability to choose the variant best suited to the application

7.  Through hole mounting enables valve manifolds to be directly mounted without the need for additional brackets

8.  The VM range has CE & UL approval (not including Industrial Ethernet) and is approvals and is also LABS free ensuring the product complies with the required international standards reduction

9.  Laser etched part numbers ensure easy identification of components

10.  Single screw & hinge locking mechanism for securing each valve to the next facilitates simple valve addition & exchange (no tie rods)

11.  Rotary switches for simple setting
& identification of Fieldbus node
addresses

• Balanced spool design enables the valves to be used with both pressure & vacuum

• Proven spool & seal pack design ensures a high life of 100,000,000 cycles

Valve Manifold Configurator

LINK:   Valve Manifold Configurator

• Intuitive, flexible & easy to use
• Flexible Step by step process that is easy navigate for any
user regardless of experience
• Enables quick specification of the valve manifold to meet your exact requirements
• Provides price, availability & order now options
• Unique part number assigned to your manifold
• Live visualization of your configuration & downloadable 2D & 3D CAD files
• Download your configuration in your native CAD format.  We support 60+ native CAD formats including AutoCAD, SolidWorks, Pro/Engineer, NX & Catia
• Easy to access & download all technical documentation & available in multiple languages
• Save your configurations for a later date & view your history anytime
• Online & telephone support available

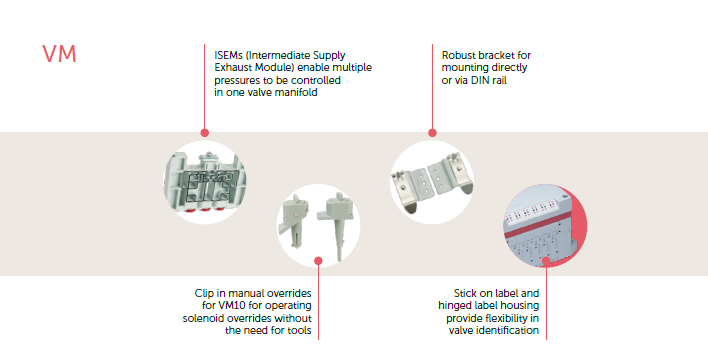

Accessories

A number of accessories and spare elements are available for our valve manifold ranges.
