7X Series Conveyors

The 7X Series Stainless Steel Line is engineered for small to heavy product requiring various levels of sanitary design and flexible layouts.

AQUAGARD 7100
General Specifications

  • All Materials are FDA Approved Plastics or Stainless SteelDorner_7100
  • Chain Widths: 4 ½", 7 ½", 10" and 12"
  • Low Friction, Friction Insert, & Roller Top Chain Available.
  • Load Capacity to 600 lbs
  • Speed Capacity to 250 ft/min
  • Lengths up to 100 ft
  • Plain Bend Corners with 24" on Centerline Radius
  • Wheel Bend Corners Available for 4 ½" Width - Radius = 8" on Centerline
  • Incline / Decline Modules up to 30 Degrees
  • Fully Adjustable, Stainless High Sides, and Adjustable Outboard Guides Available
  • Powered & Roller Transfers

AQUAGARD 7200
General Specifications

  • Flat Belt and Cleated Belt Conveyor OptionsDorner_7200_600pix
  • Widths: 1.75” (44 mm) to 18” (457 mm)
  • Lengths: 2’ (610 mm) to 18’ (5,486 mm)
  • Loads up to 60 lbs (27 kg)

 AQUAGARD 7300
General Specifications

  • Flat Belt and Cleated Belt Conveyor OptionsDorner-7300_600pix
  • Widths: 1.75” (44 mm) to 18” (457 mm)
  • Lengths: 2’ (610 mm) to 18’ (5,486 mm)
  • Loads up to 60 lbs (27 kg)
  • Models Available

AQUAGARD 7350
General Specifications

  • Straight Modular Flat Belt and Cleated Belt ConveyorDorner_7350_600pix
  • Curved Modular Flat Belt Conveyor
  • Straight Z-frame Modular Flat Belt and Cleated Belt Conveyor
  • Curved Z-frame Modular Flat Belt Conveyor
  • Widths:
       Curves: 4” (102 mm) to 36” (914 mm)
       Straights: 4” (102 mm) to 36” (914 mm)
       Z-frame Straights and Curves: 6” (152 mm) to 24” (610 mm)
  • Lengths: 36” (914 mm) to 83’ (25,298 mm)
  • Load Capacity:
       Straights and Z-frame Straights: up to 750 lbs (453 kg)
       Curves and Z-frame Curves: up to 500 lbs (226 kg)
  • CE models available

AQUAGARD 7360
General Specifications

  • All Welded Stainless Steel FrameDorner_7360_600pix
  • Straight Flat and Cleated Belt
  • Conveyor Widths: 4” to 52” (102mm to 1,321mm)
  • Conveyor Lengths: 36” to 40’ (914mm to 12,192mm)
  • Loads up to 500 lbs (227 kg)
  • Speeds up to 300 ft/min (91.4 meters/min)

AQUAPRUF 7400
General Specifications

  • Straight Flat and Cleated Modular Conveyor Belt ModelsDorner_7400_600pix
  • Curved Flat Modular Conveyor Belt Models
  • Z-Frame Flat and Cleated Modular Conveyor Belt Models (0 to 60°+)
  • Loads up to 20 lbs per square foot of belt (90 kg/m2)
  • Lengths up to 999” (25,375 mm)
  • Widths up to 60” (1,524 mm)
  • Continuous TIG welded 304 stainless steel frame

AQUAPRUF 7400 ULTIMATE

Dorner_7400ultimate_600pixThe ULTIMATE Series has been engineered for Fast & Effective Sanitation in the most demanding environments. These include RTE foods, raw protein (meat - poultry - fish), dairy and other environments with high pressure sanitation requirements.

AQUAPRUF 7600
General Specifications

  • Straight Flat and Cleated Belt Conveyor ModelsDorner_7600_600pix
  • Z-Frame Flat and Cleated Belt Conveyor Models (0 to 60°+)
  • Loads up to 20 lbs per square foot of conveyor belt (90 kg/m2)
  • Widths up to 60” (1524 mm)
  • Lengths 36” (914 mm) up to 480” (12.2 m)
  • Continuous TIG Welded 304 stainless steel frame

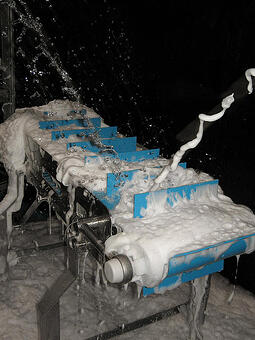

AQUAPRUF 7600 ULTIMATE

Dorner_7600ultimate_600pixThe ULTIMATE Series has been engineered for Fast & Effective Sanitation in the most demanding environments. These include RTE foods, raw protein (meat - poultry - fish), dairy and other environments with high pressure sanitation requirements.
