AquaGard 7100 Series Conveyor

  • alt text
  • alt text
  • alt text

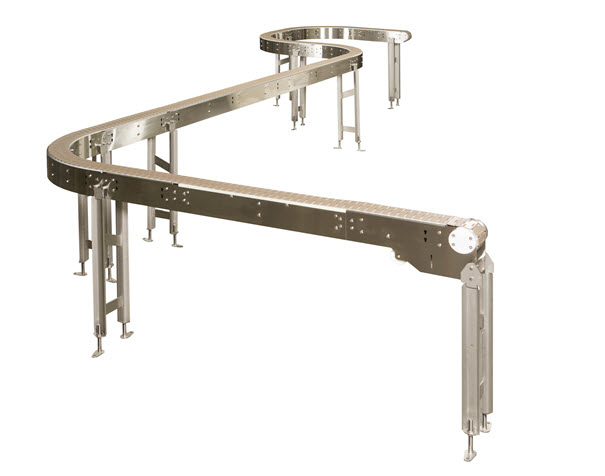

The Next Generation in Stainless Flexible Chain Conveyors

Designed for fast and effective sanitation and protection from contamination, the AquaGuard 7100 Series from Dorner takes good grade conveyors to a whole new level.

Specs & Details

Features

  • FDA approved stainless steel for ease of cleaning
  • Multiple curves, inclines & declines on a single conveyor
  • Industry best product transfers
  • High speed performance
  • Bolt together construction for modularity & add-ons
  • Shipped in sub-assemblies for fast installation

Applications

Packaging

Bottling

Dry Food Processing

Secondary Packaging

Inclines, Declines & Curves

Part Handling

Transfers

Long Lengths

Elevation Changes

Accumulation

Buffering

Loads & Speeds

Loads up to 700 lbs

Speeds up to 222 fpm

Size & Measurements

Chain Widths: 4 ½", 7 ½", 10" and 12"

Frame Widths: 5", 8", 10 ½" 12 ½"

Max Part Widths: 9 ½", 12 ½", 15", 17"

Lengths up to 100 ft

Inclines & Declines up to 30 degrees

Plain Bend Corners with 24" on Centerline Radius

Wheel Bend Corners for 4 ½" Width with 8" on Centerline Radius

Materials

All Materials are FDA Approved Plastics or Stainless Steel

300 Series Stainless Steel

FDA Approved Oil Impregnated Wear Strips

Options

Flexible Chain Types: Low Friction, Friction Insert, Roller Top, Metal, Grip Top, Cleated

Guiding: Fully Adjustable, Stainless High Guides, Adjustable Outboard Guides

Stands: Fixed Foot Support, 2B Finish Stainless Steel, Durable Welded 7 ga Construction, Inclined Mount for Angled Applications, and More

Transfers: Powered, Roller, Side to Side

Compact Drive Module & Idler Tail
