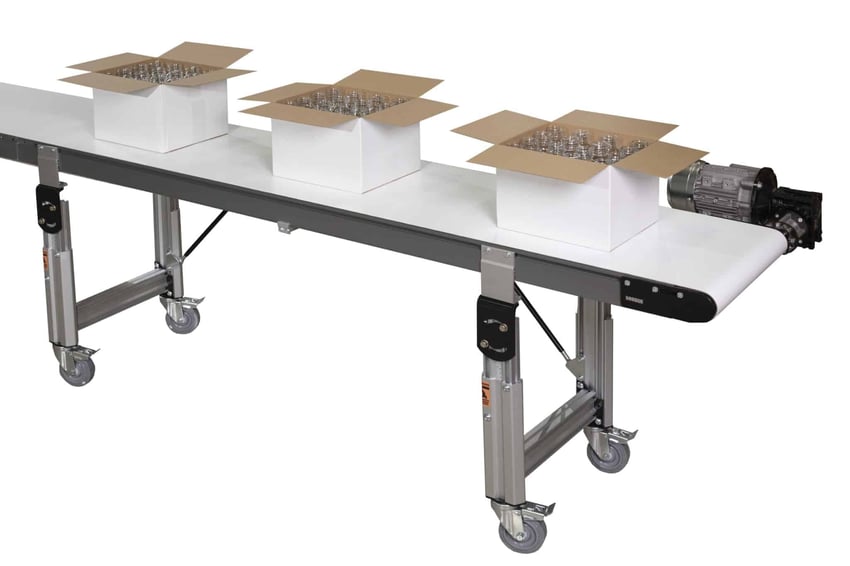

2700 Medium Duty Conveyors

Features & Benefits

Featuring an increased weight rating and extended maximum width, the 2700 Series Medium Duty is designed for medium load conveyance in material handling and eCommerce applications. This conveyor includes v-guiding and precision belt tracking to eliminate belt sway even when the conveyor is wider than it is long.

The lightweight aluminum frame design makes the 2700 ideal for AGV/AMR applications and can carry a heavier payload without weighing down the robot. The increased width and low profile mounting also allow this conveyor to fit into smaller spaces while maintaining the strength needed to convey larger products.

Applications

• Medium Load Transfers
• AGV/AMR Mounted Conveyor
• Precision Part Movement
• Material Handling & Logistics
• Part/Package Infeed and Outfeed
• Automated and Manual Assembly

General Specifications

• Flat Belt End Drive, Mid Drive, and iDrive models available
• Loads up to 68 kg (150 lbs)
• Belt speeds up to 122 m/min (400 ft/min)
• Belt widths: 203 mm to 914 mm (8 to 36 in)
• Conveyor lengths: 508 to 7315 mm (20 in to 24 ft)
• 60 mm (2.4 in) diameter drive and idler pulleys turn approximately 189 mm (7.4 in) of belt per revolution
• V-groove bedplate with guided belt provides belt tracking, even under demanding side load applications
  • Cam tracking standard on Non V-Guided belt conveyors
• 15 mm diameter integral drive shaft with auxiliary shaft location options
• Continuous Duty iDrive Motor
  • 24 Volt DC gearmotor easily powered by battery
