Dorner

3200 Modular Belted Conveyor

Specs & Details

Features & Benefits

  • Flush tail design locates bearing inside frame to fit in tight spaces
  • All belts fully contained in UHMW guiding for maintenance free tracking
  • Patented sprocket alignment key for worry free belt maintenance
  • Dual t-slot or patented Smart Slots® for flexibility and clean sided applications
  • Inboard type frame connection joint improves strength while keeping t-slots open
  • Stand mounts lock in into the frame for strength and durability, yet movable anywhere along frame length
  • Optional integrated power transfers for small part handling
  • Flexible belt containment system allows for tab or bearing retention method for up to 4 corner modules

Belt Types

  • Flat Top
  • Flush Grid
  • Friction Inserts
  • Cleated
  • Roller Top
  • Precision Move Precision Move with Fixtures

Conveyor Configurations

  • Straight
  • Z-Frame

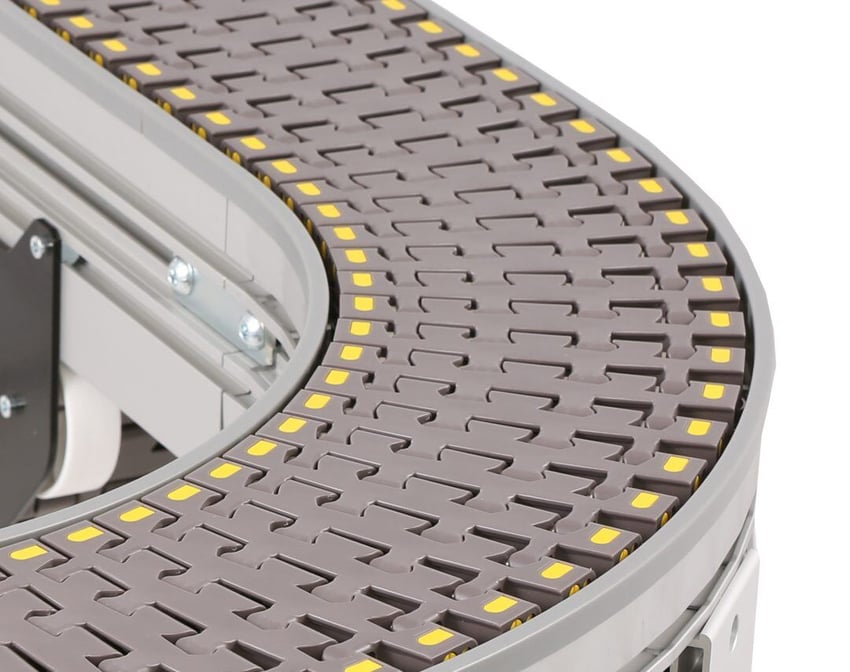

  • Curve
  • Nose-Over
  • Horizontal to Incline

Sizes & Measurements

  • Belt widths: 6″ (152 mm) to 48″ (1219 mm)
  • Conveyor lengths: 36″ (914 mm) to 999″ (25,375 mm)

Loads & Speeds

  • Belt widths: 6″ (152 mm) to 48″ (1219 mm)
  • Conveyor lengths: 36″ (914 mm) to 999″ (25,375 mm)
