Dorner 3200 Belted Conveyor

Dorner 3200 Belted Conveyor


The Next Generation 3200 Series Belted Conveyors not only includes many of the features from the original line but new designs to enhance its functionality and performance.

The decision to merge the 2 product lines was made to help streamline processes internally, reduce costs to the consumer, as well as simplify the products lines.

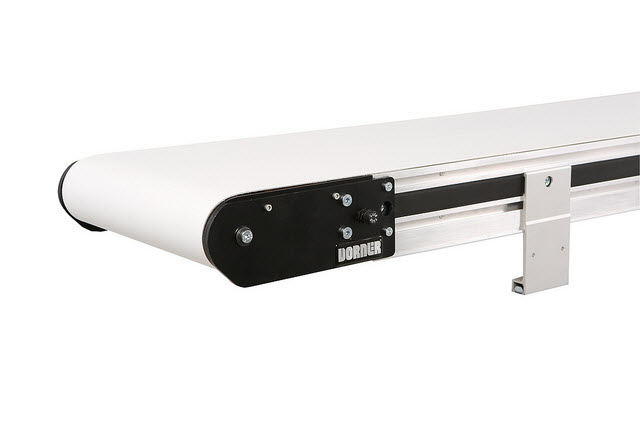

dorner_3200_belted3200 Series Heavy Duty Belt Conveyor - General Specifications

  • Flat Belt End Drive, Cleated Belt End Drive,Center Drive, and iDrive®models
  • Widths up to 48” (1,219) (Wider widths available, consult factory)
  • V-guided belt tracking
  • Lengths 30" - 99’ (30,175) depending on drive selection
  • Speeds up to 600 Ft/Min (182 m/min)
  • One of our heavy duty belt conveyors handling loads up to 1,000 lbs (455 kg)
  • 3" (76mm) diameter drive pulley turns approximately 9.7"(246 mm) of belt per revolution

3200 Series Heavy Duty Belt Conveyor Applications:

  • Parts transfers
  • Part Accumulation
  • Precision Part Movement
  • Part Incline / Decline Routing
  • Part Handling and positioning
  • Automated and Manual Assembly

Legacy 3200 vs 3200 Series Belted V2-  Product Improvements

  • Flat side tail design for ease of machine interface
  • Added Rib Top belt option
  • Added the ability to order profile specific on A/D side
  • Added the ability to order dual / auxiliary output shafts
  • Added the ability to order cleat height and profile height separately
  • Reduced the size of the nosebar idler roller while improving ease of maintenance and durability
  • Improved guiding options including up to 6” tall guides and outboard guiding
  • Added cleat heights up to 6” tall
  • Added cleated belt widths to 48” wide
  • Improved the durability of iDrive switches
  • Added self tracking to Precision Move belting
  • Stronger frame joints – don’t need to support stand at joint
  • Integrated channel way for wires / hoses
  • Reduced the price of LPZ models by use of fixed angle knuckles
  • Maintained 3200 Series List Price

What's the Same?

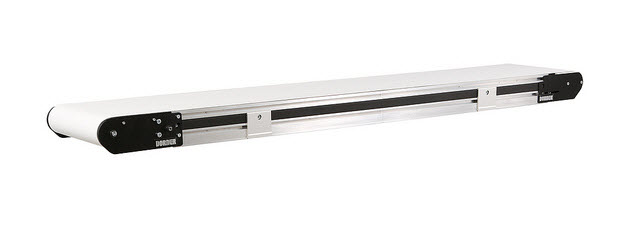

  • The profile height is exactly the samedorner_flat_belt_page_image
  • Frame width is exactly the same
  • The t-slots are in the exact same position
  • The drive shaft is the same diameter and in the same position
  • All mount packages are identical (different length screw)
  • All gearmotors and controls are identical
  • Return rollers are the same
  • Stand mount heights and bolt location are the same (changed to t-slot)
  • New guiding and belt options can be used on the old 3200
  • Center drive module is exactly the same

What's Different?

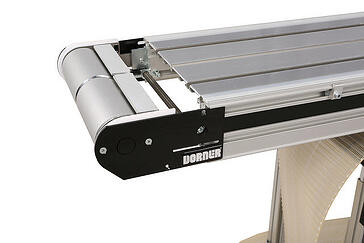

  • Drive rollers are new design (bearings press fit on spindle)dorner_flat_belt_page_image_2
  • Idler rollers are different width (different service part)
  • Drive bearings are different
  • Nosebar design is entirely different
  • Belting part number are all new (lengths are slightly different)
  • The new 32V2 tail can not be bolted to an old frame
  • The old 3200 tail can be bolted to the new V2 frame
  • New iDrive controller is not backward compatible with old 3200 switches
