 1100 Series Miniature Belt Conveyors

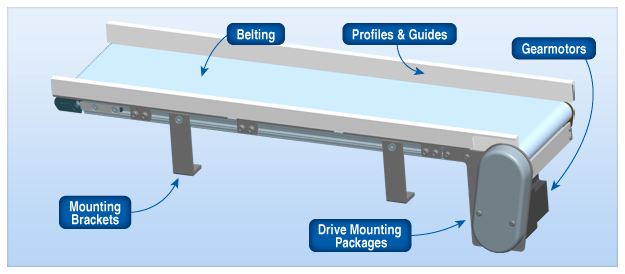

Dorner_1100-render

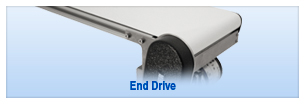

Dorner_1100-EndDrive-thumbDorner_1100-EndDrive-thumb













1100 Series Miniature Belt Conveyors - General Specifications

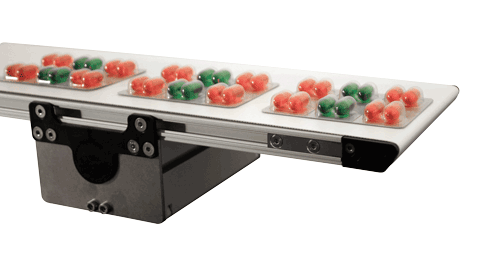

  • Flat Belt End Drive, or Flat Belt Mid DriveDorner_1100-pill-pack
  • End Drive - 1" (25mm) Diameter Drive Pully
  • Mid Drive - 1.25" (32mm) Diameter Center Drive Pulley
  • 0.625" (16mm) Diameter Idler Pullys
  • 0.31" (8mm) Diameter Nose bar option for one or both ends
  • Belt Widths: 1.75" (44mm), 3.75" (95mm), 6" (152mm), 8" (203mm), & 10" (254mm)
  • Conveyor Lengths: 10.5" (268mm) to 72" (1829mm) in 1/8" (3mm) Increments
  • Loads up to 15 lbs (6.8 kg)
  • Belt Speeds up to 70 fpm (21m/min)

Minature Belt Conveyors Applications

  • Small or light weight product movement
  • Medical
  • Pharmaceutical
  • Life Sciences

Features

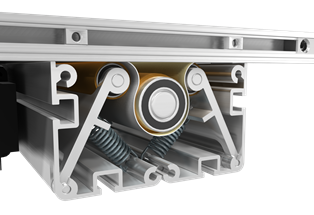

  • Pinch Drive Design - (patent pending)mid-drive-web
    • Increases carrying capacity without need for high belt tension
    • Low belt tension allows for use of miniature rollers for optimal handling of small parts
    • Low belt tension virtually eliminatesbelt stretch providing maintenance free conveying
    • Belt is tracked with conveyor frame design and pinch drive worry free operation
    • Four fasteners allows removal of 1/2 of pinch drive making belt changes fast and easy
    • Pinch drive is reversible providing maximum flexibility in application
  • Low Profile Height- Compact miniature design frees up valuable machine or worker space
  • Small Roller Diameter- Optimal size for the handling of small parts and transfer of small parts
  • Clean Room Certified - Class 100 certified for use in medical and pharmaceutical clean room applications
  • T-Slot- Drop in T-bar for ease and flexibility in mounting automation components or accessories
