WERMA MC55 / MC35 LED Installation Beacons & Surface-mounted Beacons

Bright, colorful & smart for various applications

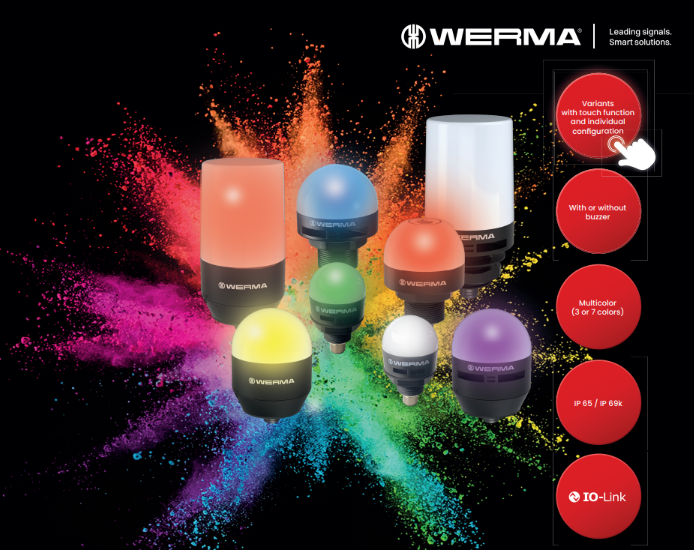

The compact LED recessed light impresses with its high light quality and flexible application options.

Available in 2 sizes (55mm & 35mm) with up to 7 colors and different designs – perfectly tailored to every application area.

APPLICATIONS:

• Acknowledgement of machine failures

  Visual and audible alarms signal malfunctions. With a simple touch, the operator acknowledges the alarm and sends a feedback signal to the control system.

• Start/stop of machine cycles

  A tap of the finger is all it takes to start or stop machine cycles – safely and directly.

• Control of peripheral devices

  Up to 200 mA can be switched directly, for example for external signal transmitters or additional devices.

• Time-based escalation

  In the event of malfunctions, such as a conveyor belt coming to a standstill, the MC55 first activates a visual signal. If there is no response, an acoustic alarm automatically sounds after a defined period of time.

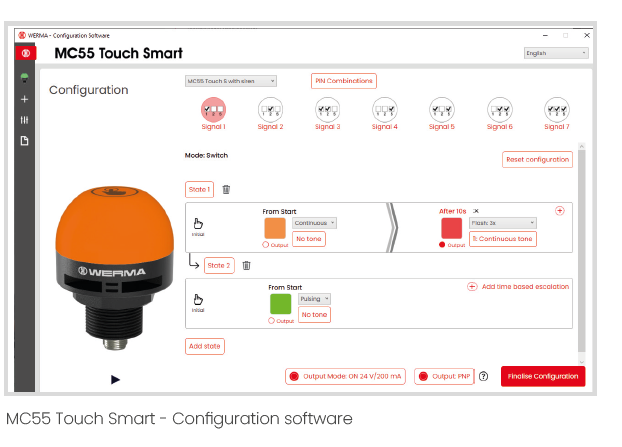

MC55 Smart – The configurable solution

The MC55 series with smart function offers numerous configuration options in the configuration software.

• Freely adjustable colors, light patterns (continuous, flashing, strobe or pulsed light) & tones
• Choice of pulse signal or 24 V circuit

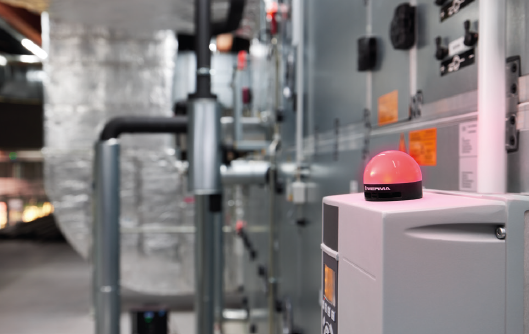

• Display of statuses in the machine housing or on control cabinets
• Time-based escalation configurable
• Simple configuration of buttons or switches (MC55 Touch)

MC35 – Compact design with impressive signaling

The MC35 combines a compact design with impressive signalling. Thanks to modern LED technology, it provides clear, highly visible status indicators – even in demanding environments. Quick to install, durable and versatile: the ideal solution for efficient and reliable machine and system communication.

MC55 Standard

The MC55 offers clear, easily recognisable LED signals in a compact housing. It is easy to integrate and is suitable for a wide range of applications where reliable status indication is required. The light is available in different variants so that it can be flexibly adapted to different requirements.

• Diameter: 55 mm
• With or without buzzer
• Mounting: flush-mounted, pipe-mounted and floor-mounted
• Available variants: Tricolor, multicolor, IO-Link & Smart configurable

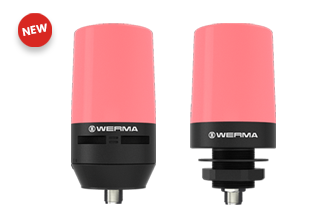

MC55 High

Thanks to its higher dome, the MC55 High offers even better visibility of the LED signals – even from a greater distance or unfavourable viewing angles. It is easy to integrate and is suitable for applications where a particularly clearly visible status display is required. This version is also available in different variants to support different requirements.

• Diameter: 55 mm (High variant)
• With or without buzzer
• Mounting: Flush mounting M30, pipe and floor mounting
• Available variants: Tricolor, multicolor, IO-Link & Smart configurable

MC55 Touch

The WERMA MC55 Touch combines clearly visible LED signals with an integrated touch function. It enables direct operation on the device and is suitable for applications that require both a clear status display and simple user interaction. Various versions are available to adapt it flexibly to different areas of application.

• Diameter: 55 mm
• Simple feedback to a control system when pressed
• With or without buzzer
• Mounting: flush mounting
• Available variants: Tricolor, multicolor, IO-Link & Smart configurable
