EYE+

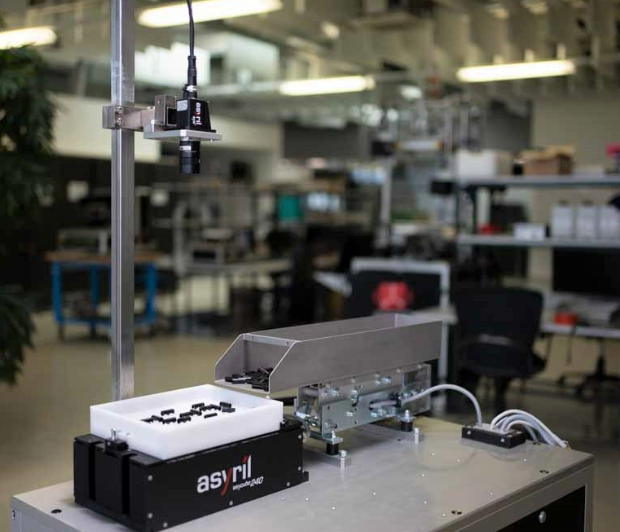

EYE+ smart control system

EYE+ optimizes the performance of your Asycube flexible feeder with an integrated vision based on Artificial Intelligence and a powerful controller. With EYE+ you have an innovative plug and play system that can be easily integrated into any automation machine.

EYE+ consists of:

• Compact controller

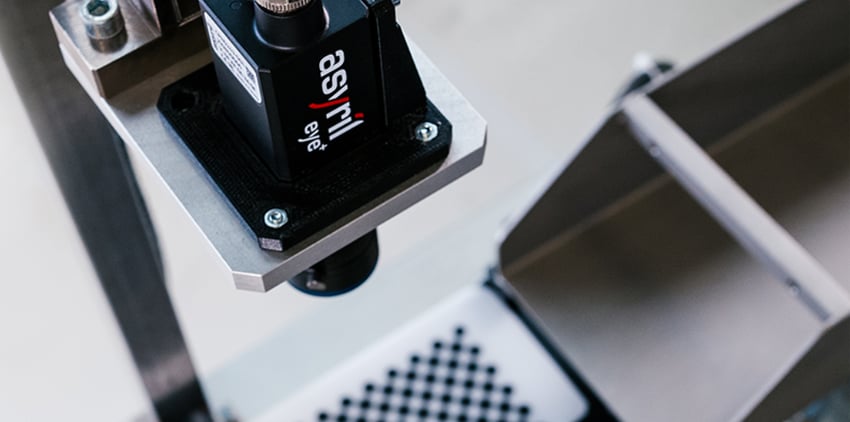

• High resolution camera
• Calibration plate
• Power cable

Easy to use

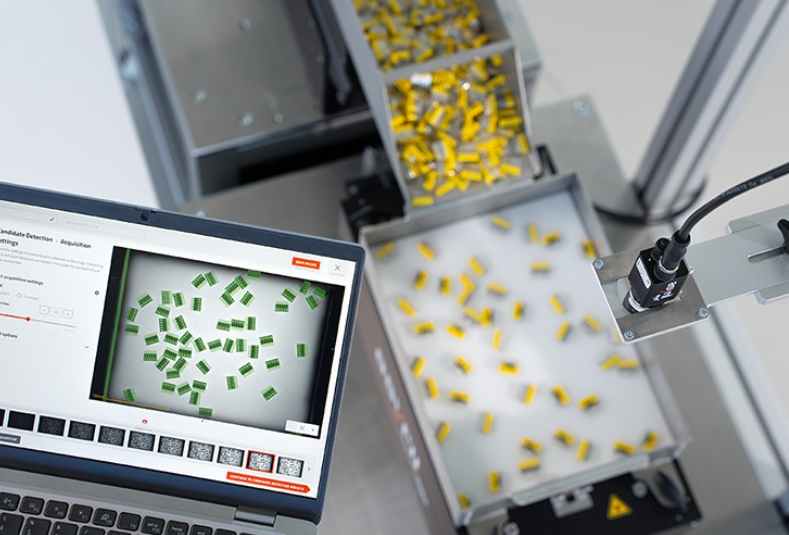

No previous vision experience is required to set up and use EYE+. It is simple and intuitive to use, just follow the steps in the EYE+ Studio web interface.

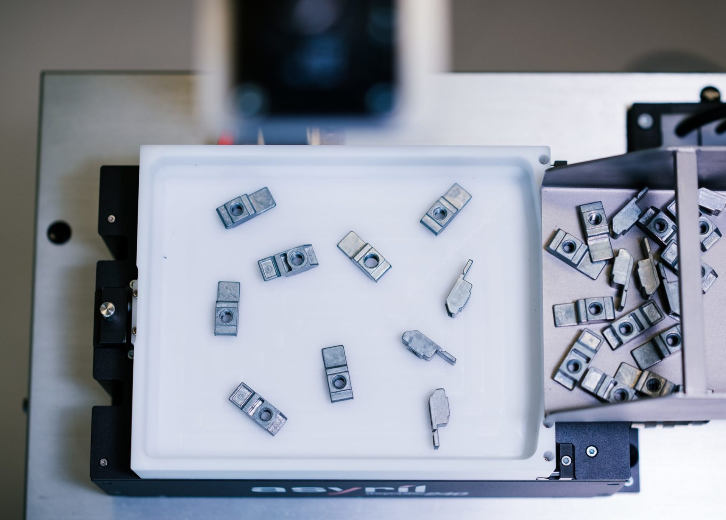

Scalable

It allows you to create and configure your recipes easily and in a few minutes, without additional costs, which ensures profitability when feeding parts in succession.

Benefits

• Easy to use and to install

• Simple and user-friendly interface without coding

• Easy creation and configuration of recipes in minutes

• Plug and play: quick and intuitive installation, assembly and configuration

• All-in-one: no third-party software or hardware required

• Attractive and cost competitive

• Compatible with all brands of PLCs and industrial robots



Technical Description

EYE+ controller

Dimensions: 141 x 187 x 71 mm
Weight: 1.26 kg
Operating temperature: +5 °C to 40 °C
Power:  Supply voltage: +24 VDC (+/- 5%)
Current: 6.5 A max

EYE+ camera

High resolution (6.3 MP)

Connectivity

4x Gigabit Ethernet (PoE for the camera)

Additional cables

Ethernet for PLC or robot

Ethernet for EYE+ camera

Ethernet for Asycube

Ethernet for Asyfill
