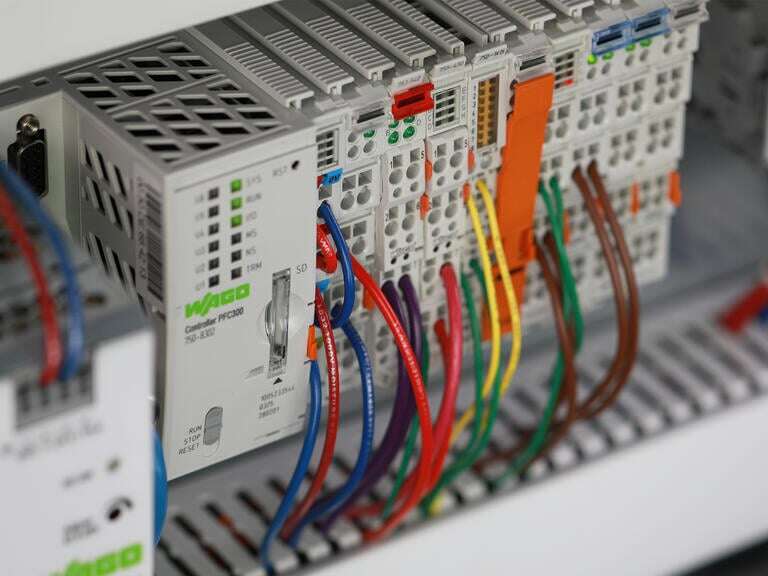

WAGO PFC300 Controller (Item no. 750-8302)

Multi-Protocol Controller with Cloud Integration & Advanced Cybersecurity

This controller supports multiple fieldbus protocols including EtherNet/IP Adapter and Scanner, EtherCAT master, PROFINET, MODBUS TCP, and MODBUS RTU. IIOT protocols including OPCua and MQTT can also be enabled for connection to Cloud servers.

By using the controller’s Web Based Management System and programmed with CODESYS 3.5 software, system configuration is easy. The USB-C service port provides direct access for programming, configuration, and firmware updates. It also comes TLS encryption, VPN capabilities, and a built-in Firewall for ultimate cybersecurity.

The PFC300 comes equipped with an advanced dual-core, 64-bit processor and extensive 2 GB of RAM memory, making it an optimal choice for complex applications.

Product Features



The PFC300 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty modules found within the 750/753 Series.

Two ETHERNET interfaces and an integrated switch enable line topology wiring.

An integrated Webserver provides user configuration options, while displaying PFC300 status information.

Besides the processing industry and building automation, typical applications for the PFC300 include standard machinery and equipment control (e.g., packaging, bottling and manufacturing systems, as well as textile, metal and wood processing machines).

Advantages:

  • Programmable per IEC 61131-3
  • Programmable via CODESYS V3.5
  • Direct connection of WAGO I/O Modules
  • 2 x ETHERNET (configurable), RS-485
  • Linux operating system with RT‐Preempt patch
  • Configuration via CODESYS or Web-Based Management user interface
  • Maintenance-free

Technical Data

COMMUNICATIONSETHERNET, RS-485 interface, MQTT, Fieldbuses integrated into CODESYS:  Modbus TCP master/slave - Modbus (UDP), WagoAppPlcModbus Library - Modbus (RTU), WagoAppPlcModbus Library, EtherNet/IPTM Adapter (slave), EtherNet/IPTM Scanner, EtherCAT® Master, PROFINET Controller (limited), OPC UA Server/Client, OPC UA Pub/Sub (can be installed later)

ETHERNET PROTOCOLSDHCP, DNS, NTP, SFTP, FTP, FTPS, SNMP, HTTP, HTTPS, SSH

VISUALIZATION:  Web-Visu

OPERATING SYSTEM:  Real-time Linux (with PREEMPT_RT patch)

CPU:  Real-time Linux (with PREEMPT_RT patch)

PROGRAMMING LANGUAGE PER IEC 61131-3:  Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC)

PROGRAMMING ENVIRONMENT:  CODESYS V3.5 - Includes the following CODESYS features: MULTICORE, WebVisu, License for IIoT Libraries, License for OPC UA PUB/SUB
