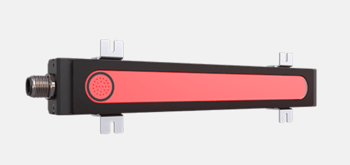

WERMA LineLIGHT Fusion Integrated Signaling

Product Information

• Integration of the machine status display into the machine design.
• Seamless integration into the machine surface minimizes dirty edges and prevents openings in the machine interior.
• High level of protection against the ingress of dust and liquids into the machine interior.
• Homogeneous illumination ensures optimum visibility.
• Available in two versions: continuous or segmented design for flexible signaling.
• Flexible installation using industrial adhesive tape or variably adjustable clips with screw mounting.

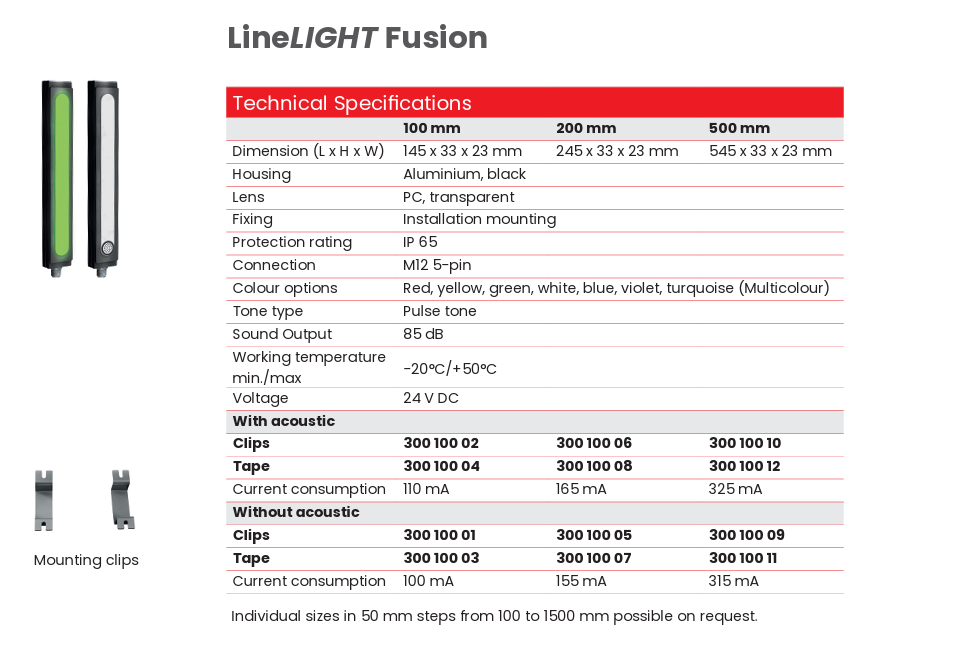

Technical Specifications

• Full-surface signaling
• With or without siren
• Available in 100 mm, 200 mm & 500 mm
• Sizes in 50 mm increments from 100 mm to 1500 mm available on request
• Voltage 24 V DC
• Protection class IP 65
• M12 connection

Typical Applications & Mounting

For machine and plant manufacturers who want to implement a consistent machine design with an integrated signaling solution for signaling machine statuses on:

• machines

• automation systems

• assembly systems

• transport and conveyor belts

• AGVs (automated guided vehicles)

• All other industrial products that have a sheet metal housing

Mounting types:

• Screw mounting using clips

• Adhesive mounting using industrial adhesive tape

LineLIGHT Fusion Segment Specifications

• Segmented signaling in auto-scale mode
• With or without siren
• Available in 200 mm, 300 mm, 600 mm & 900 mm
• Sizes 1200 mm & 1500 mm available on request
• Voltage 24 V DC
• Protection class IP 65
• M12 connection

Segment Technical Specifications

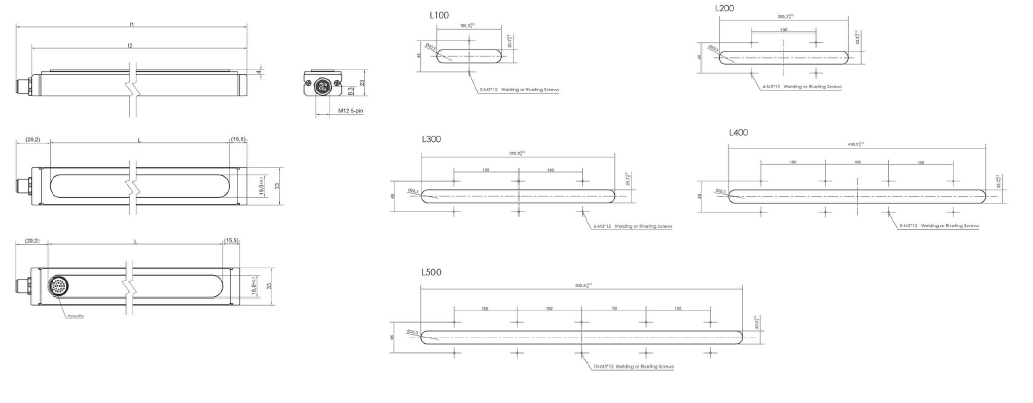

Technical Diagram:

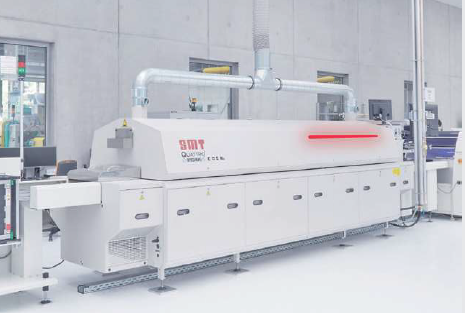

Where do you see integrated signaling?
