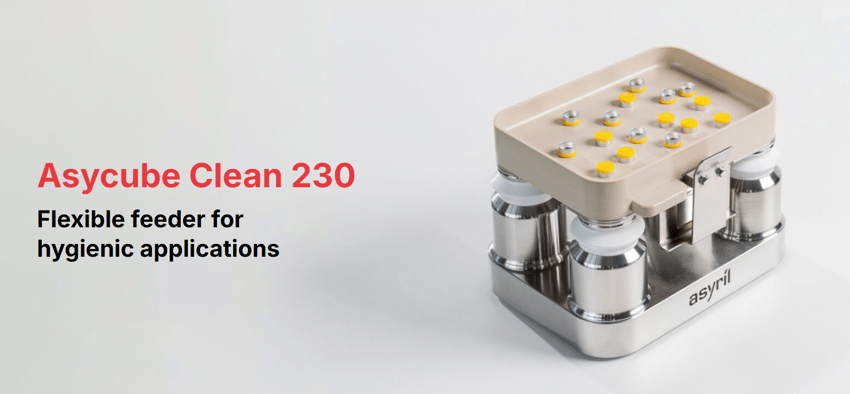

Asyril Asycube Clean 230

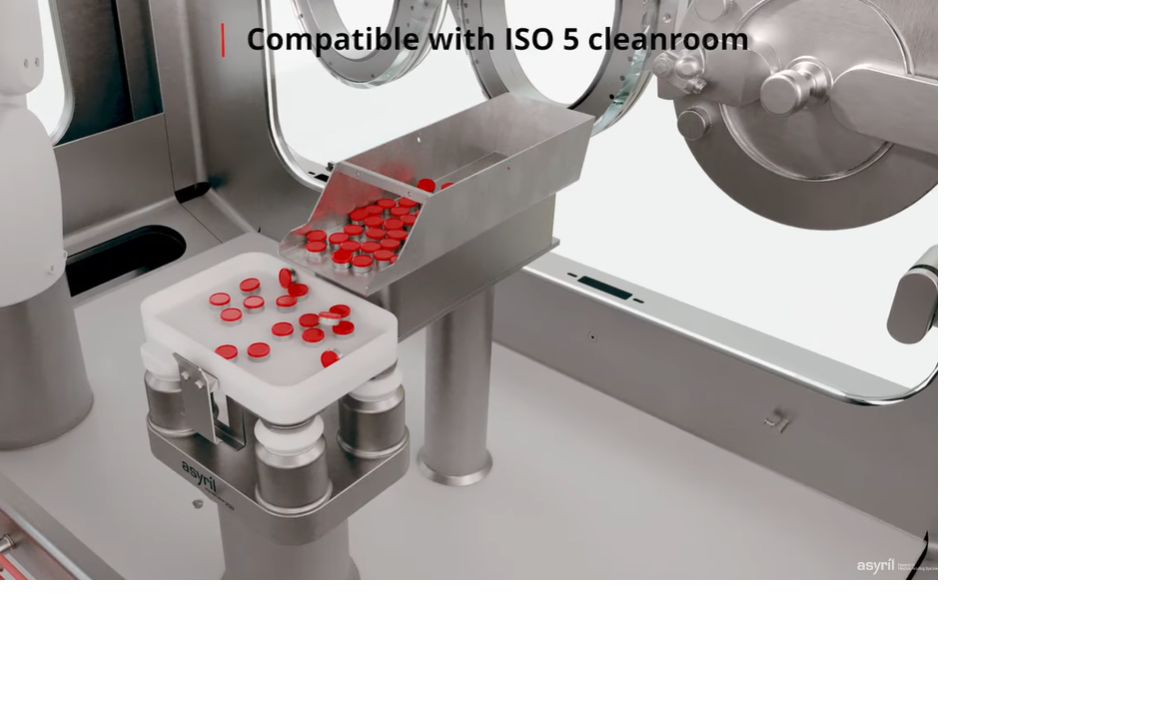

Asycube Clean 230 in action!

The future of hygienic part feeding in pharma. Designed specifically for cleanroom and pharmaceutical environments, the Asycube Clean 230 is the first flexible feeder engineered to meet the strictest GMP Annex 1 requirements. Compact enough to fit into a 190 Rapid Transfer Port (RTP), its sterilizable plate and chemical-resistant design enable seamless integration into robotized isolators and aseptic zones. Unlike traditional bowl feeders, the Asycube Clean 230 offers unmatched flexibility: no custom tooling, faster changeovers, and full adaptability for small batches and personalized healthcare. The Asycube Clean 230, like our other products, also features Asyril’s patented 3-axis vibration technology and works seamlessly with the Eye+ Smart Control System, ensuring fast and accurate part detection. Built for robots, ready for the future! It’s the smarter, safer choice for modern pharmaceutical production.

Specs & Details

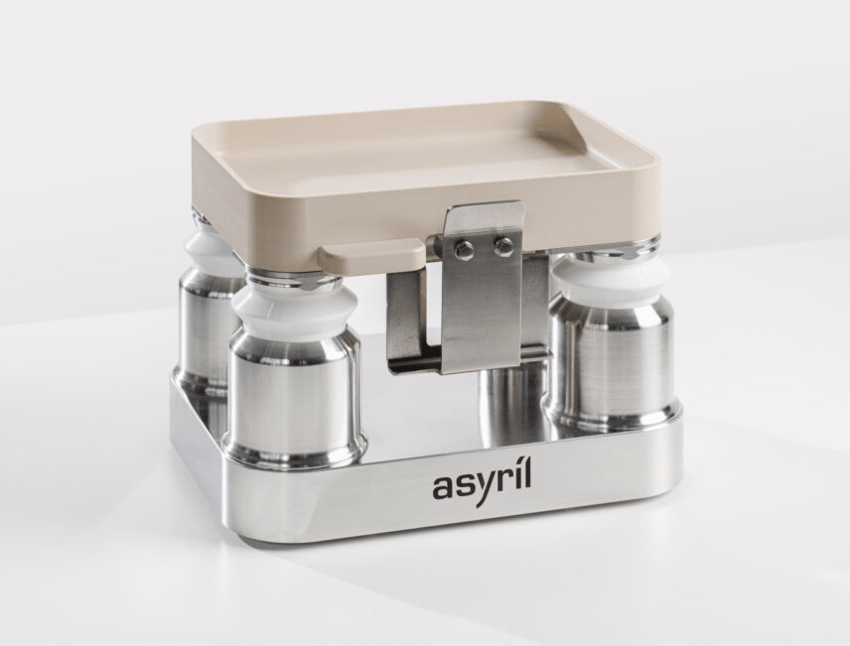

Meet the Asycube Clean 230

The future of hygienic part feeding in pharma.

Designed specifically for cleanroom and pharmaceutical environments, the Asycube Clean 230 is the first flexible feeder engineered to meet the strictest GMP Annex 1 requirements. Compact enough to fit into a 190 Rapid Transfer Port (RTP), its sterilizable plate and chemical-resistant design enable seamless integration into robotized isolators and aseptic zones.

Unlike traditional bowl feeders, the Asycube Clean 230 offers unmatched flexibility: no custom tooling, faster changeovers, and full adaptability for small batches and personalized healthcare.

The Asycube Clean 230, like our other products, also features Asyril’s patented 3-axis vibration technology and works seamlessly with the Eye+ Smart Control System, ensuring fast and accurate part detection.

Built for robots, ready for the future! It’s the smarter, safer choice for modern pharmaceutical production.

Built for sterile performance, ready for pharma.

✔️ ISO 5 cleanroom compatible
Operate confidently in controlled environments with minimal contamination risk.

✔️ IP65 waterproof & easy to clean
Smooth surfaces, chemical resistance, and H₂O₂ compatibility ensure fast and thorough cleaning.

✔️ GMP Annex 1 compliant
Meets the strictest pharmaceutical manufacturing standards.

✔️ Fits into a 190 RTP
Seamless integration into isolators and sterile production lines.

✔️ Made with FDA-compliant materials
Safe for indirect contact in pharma, reliability you can trust.

Technical description

Vibrating platform dimensions -

Diagonal: 230 mm

General dimensions -

Width: 177.5 mm, length: 237.5 mm

Compatible part sizes -

5 to 40 mm

Ingress protection -

IP65 (per IEC 60529)

GMP design compliance -

According to ISO 14644-14 and EU GMP Annex 1

Cleanroom classification

ISO Class 5 (per ISO 14644-14)

Certified materials for sterile applications

Engineered using FDA-compliant materials for durability in repeated sterilization processes, the Asycube Clean 230 combines:

Titanium and stainless steel for strength and corrosion resistance
PEEK for its chemical stability and cleanroom suitability
FDA-compliant silicone for safe indirect contact in regulated environments

Together, these materials ensure full compatibility with hydrogen peroxide decontamination protocols, and support long-term operation in ISO 5 cleanroom environments.

Agile production for a new era in pharma

The Asycube Clean 230 supports rapid format changes with its tool-free platform release, ideal for high-mix, low-volume production. Whether producing rare disease treatments, personalized therapies, or on-demand vaccines, it empowers manufacturers to reduce downtime, limit human intervention, and relocalize production.

Its robot-ready design makes it a future-proof solution for cleanroom automation and decentralized pharma strategies.
