SensoPart VISOR® XE Industrial Machine Vision

The new VISOR® XE is ideal for detection, inspection, & more.

🏵️ High speed
🏵️ Easy integration
🏵️  AI support

Experience the future of industrial machine vision with our VISOR® XE series, and take your production processes to a new level.

Advantages of our new vision sensors

• Powerful hardware that offers compatibility with the existing VISOR® product line while also reducing evaluation time
  • VISOR® XE Code Reader and Robotic: Classic detection of data codes, pattern matching, contours, and calipers operate up to
    four times faster than previous models
  • VISOR® XE Object AI: Detector classification using AI is up to eight times faster than previous models
• Simple system integration: additional communication plug for simplified installation
• Universally applicable: versatile for multiple tasks, e.g. as a code reader and for robot-guided applications

Applications

VISOR XE vision sensors cover a wide range of applications in production automation - from simple presence and completeness checks to complex quality control.

It makes this new generation of vision sensors a smart investment that
delivers lasting value and fast returns.

Models

Highlights

▪ VISOR® ready-to-use:

• VISOR® XE Allround
• VISOR® XE Object
• VISOR® XE Robotic
• VISOR® XE Code Reader

▪ High-resolution monochrome or color imaging chip

• 1600 x 1200 pixels
• 2560 x 1936 pixels

▪ User-friendly configuration software
(also available offline)

▪ SensoView & SensoWeb

▪ Integrated lens - wide, medium, narrow

▪ Motorized focus adjustment

▪ High-performance, integrated
LED lighting - white, red, infrared, & ultraviolet

▪ Target Laser

▪ Can be combined with external
illumination

▪ C-Mount lens - various focal lengths

▪ Integrated processing unit with
high-performance processor &
additional AI optimization

▪ Robust & vibration-resistant
metal housing, IP 65 / IP 67

▪ Compact dimensions:
71 x 45 x 45 mm

▪ Status LEDs

▪ Power supply & I/O, M12, 12-pin

• Power supply
• I/Os
• External lighting

▪ Configuration & data output, Ethernet, M12, 4-pin

• 2x Ethernet
• EtherNet/IP
• PROFINET
• sFTP/SMB archiving
• SensoWeb

▪   Simple & flexible installation using dovetail mount

▪  Extensive range of mounting accessories & holders

Application Examples

Classification of springs -  VISOR® XE Object AI’s classification detector reliably distinguishes even very similar-looking springs, ensuring accurate feeding to the machine.

By providing just a few examples for each class, the classifier automatically learns to differentiate between types.

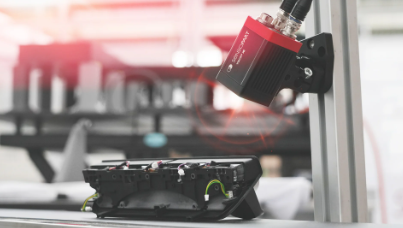

Precise Presence Detection of Car Door Components -

VISOR® XE V50 Object AI, equipped with advanced artificial intelligence, performs a precise presence check of the numerous small components during the assembly of car doors.

The “Classification (AI)” detector enables the vision sensor to perform over 40 AI-based checks in a short time.  The detector stands out for its user-friendly design, removing the need for time-consuming selection of the optimal image processing method. Users only need to teach in sample images of components with and without the desired element, which significantly streamlines and accelerates the process.

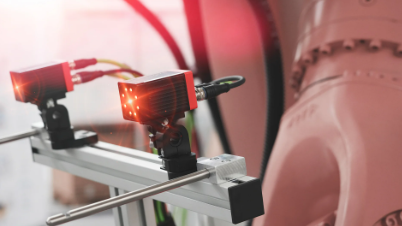

Precise robotic handling for large components -

   With the VISOR® XE Robotic the exact position of the large components is determined and transferred to the controller in robot coordinates.

The VISOR® XE series enables fast, cost-effective installation and connection of multiple vision sensors thanks to the additional LAN connector, which reduces cabling and installation time. This solution ensures the reliable detection of large components and simplifies their integration into existing systems.

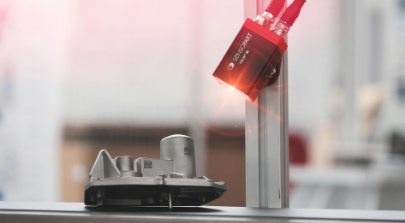

High-Speed, High-Resolution Code Reading - The VISOR® XE Code Reader effortlessly interprets barcodes and both printed and directly marked data matrix codes, easily reading multiple and mixed 1D and 2D codes at the same time.

The vision sensor ensures reliable code detection, even under challenging conditions like long distances, moving objects, low contrast, or damaged codes.

The code reader combines high resolution with fast processing speeds, and is available with various options for optics and illumination. The V50 (5 megapixel) model reads codes in large fields of view in under 40 milliseconds and eliminates the need for multiple devices.
