Universal Robots

UR10g-1750 Long-Reach Cobot

Q: What are the UR10g-1750's payload and reach?

The Universal Robots UR10g-1750 has a 1750 mm (68.9 in) reach, the longest in the g-Series, with an 8 kg (17.6 lb) payload and a 10 kg (22 lb) extended payload. It weighs 44.7 kg (98.5 lb) on a Ø204 mm footprint, repeats to ±0.08 mm, reaches 5 m/s at the tool center point and is rated IP65.

Q: What is the Universal Robots g-Series?

The g-Series is Universal Robots' 7th-generation robot arm family, released in 2026 as part of the Gen 7 platform. It builds on the UR Series design and adds power, data and safety connections at the tool flange, so cameras, sensors and higher-power grippers connect without external cabling. The family is the UR10g-1750, UR17g-1300 and UR18g-950, with IP65 protection and an enclosed joint design.

Q: Does the UR10g-1750 replace the UR8 Long?

Yes. Universal Robots lists the UR10g-1750 as the successor to the UR8 Long. It builds on the UR8 Long's precise linear motion and high-speed acceleration with the same 1750 mm reach, and adds 1 Gb Ethernet, 24/48 V power and safety-rated inputs at the tool flange. Universal Robots says the UR8 Long remains fully supported, with service, spare parts and software updates continuing.

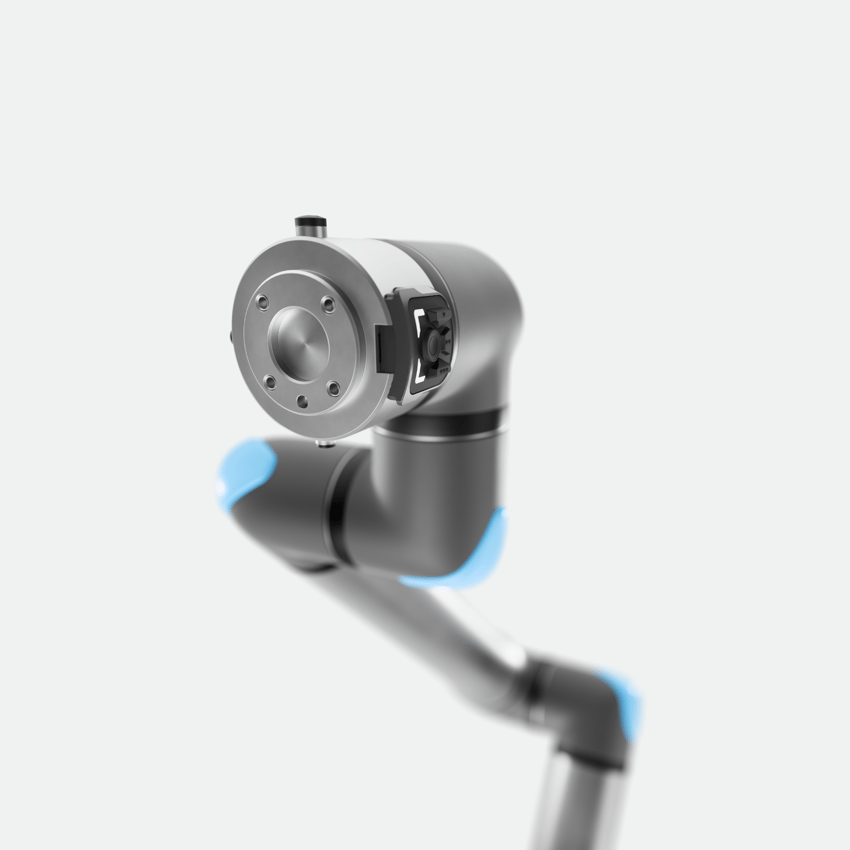

Q: What is built into the UR10g-1750's tool flange?

The UR10g-1750 tool flange has an M12 X-coded 1 Gb Ethernet port for cameras and sensors, an M8 power connector supplying 24 or 48 V (5 A peak, 3 A continuous), and an M8 I/O connector with digital I/O, a safety input, and analog inputs or RS-485. A force/torque sensor is built in. Universal Robots says M8 compatibility preserves existing tooling investments.

Q: Which controller and software does the UR10g-1750 use, and does UR+ tooling work with it?

The UR10g-1750 runs PolyScope X on a Gen 7 CB7 Core controller (or the CB7 Core Compact versions), with the TP7 teach pendant and Gen 7 cables. An optional SP7 Smart Panel mounts at the tool for two-hand guiding. Universal Robots says Gen 7 is fully compatible with UR+, so certified UR+ peripherals, software and solutions are designed to work with the g-Series out of the box.

Q: Who sells and supports the UR10g-1750 in New Jersey?

The Knotts Company in Berkeley Heights, NJ, a Universal Robots partner since 2017, sells and supports the Universal Robots UR10g-1750 for manufacturers in New Jersey, New York and Eastern Pennsylvania. Knotts can help you size the arm to your payload, reach and cell layout before you buy. Contact automate@knottsco.com or (908) 464-4800.

Request a Quote

Helpful Resources

UR10g-1750 Data Sheet

Download Buying Guide

Specs & Details

Features & Benefits

The UR10g-1750 gives you the longest reach in the g-Series family on a Ø204 mm footprint, so one cobot can cover a larger work envelope without a bigger base.

Integrated tool flange: 1 Gb Ethernet (M12), 24/48 V power (5 A peak, 3 A continuous) and safety-rated inputs at the wrist, with no external cabling to the controller
M8 connector compatibility preserves existing end-of-arm tooling investments
Built-in force/torque sensor at the tool flange
IP65 rating with an enclosed joint design and fewer components
LED light ring at the base shows cell status across the shop floor
Optional SP7 Smart Panel at the tool: 2PE Freedrive button (ISO 10218-1:2025 compliant) and 3 configurable buttons; detachable for welding or machining
Up to 5 m/s tool center point speed and ±0.08 mm repeatability
Runs PolyScope X on the CB7 Core controller with the TP7 Core teach pendant; works with the UR+ ecosystem
Mounts in any orientation on a Ø204 mm (8.0 in) footprint

Applications

Palletizing and depalletizing

Machine tending

Material handling

Welding

Assembly

Screwdriving

Bin picking

General Specifications

Part of Universal Robots' Gen 7 platform, the UR10g-1750 runs PolyScope X on the CB7 Core controller with the TP7 Core teach pendant. It reaches up to 5 m/s at the tool center point, repeats to ±0.08 mm (ISO 9283), and is rated IP65 with an enclosed joint design for dusty or wet production areas.

Size & Measurements

Reach 1750 mm / 68.9 in

Payload 8 kg / 17.6 lb, extended 10 kg / 22 lb

Footprint Ø 204 mm

Weight 44.7 kg / 98.5 lb

Repeatability ±0.08 mm

Max TCP speed 5 m/s

Full Specifications

Payload	8 kg (17.6 lb)
Extended payload	10 kg (22 lb)
Maximum payload (data sheet)	10 kg (22 lb)
Reach	1750 mm (68.9 in)
Robot weight	44.7 kg (98.5 lb)
Weight including cable (data sheet)	47.3 kg (104.3 lb)
Footprint	Ø204 mm (8.0 in)
Pose repeatability (ISO 9283)	±0.08 mm
Maximum TCP speed	5 m/s
Maximum power consumption	615 W
Degrees of freedom	6 rotating joints
Joint architecture	2-1-3
Joint working range	Base, Shoulder, Elbow, Wrist 1, Wrist 2, Wrist 3: ±360°
Joint maximum speed	Base ±180°/s; Shoulder ±180°/s; Elbow ±240°/s; Wrist 1, 2, 3 ±300°/s
Tool flange (mechanical)	ISO 9409-1-50-4-M6
Tool flange M8 I/O	M8 8-pin A-coded: 2 digital in (or 1 safety input), 2 digital out, 2 analog in (or 1 RS-485), 12 or 24 Vdc power, 2 A (dual pin) / 1 A (single pin)
Tool flange M8 power	24 or 48 Vdc, 5 A peak (2 s), 3 A continuous
Tool flange Ethernet	M12 X-coded, 1 Gb Ethernet
SP7 Smart Panel interface	3 digital in and 1 safety input, 4 digital out, 5 Vdc power
Force/torque sensor at tool flange	Built in. Force x-y-z: range ±150.0 N, precision ±7.5 N, accuracy ±8.3 N. Torque x-y-z: range ±10.0 Nm, precision ±0.2 Nm, accuracy ±0.5 Nm
Average power consumption	350 W
Noise level	< 55 dB(A)
Control loop frequency	500 Hz
Safety functions	23 configurable safety functions
Compliance	TÜV Rheinland EN ISO 13849-1 and EN ISO 10218-1; RoHS; TÜV Rheinland cTÜVus; UL 1740
IP classification	IP65
Operating temperature	0–50 °C / 32–122 °F (reduced performance from 35 °C and up)
Humidity	≤ 90% RH (non-condensing)
Robot materials	Aluminium, plastic, steel
Status indication	LED light ring at robot base
Arm mounting	Any orientation
SP7 Smart Panel	Optional
Software	PolyScope X
Controller	CB7 Core, CB7 Core Compact, CB7 Core Compact 0.55 m
Teach pendant	TP7
Cables	Gen 7 cables

What's in the box

UR10g-1750 robot arm

Gen 7 platform: CB7 Core controller, TP7 Core teach pendant, PolyScope X

SP7 Smart Panel (optional)

Get Started with the UR10g-1750

Schedule a demo

Frequently asked questions

What are the UR10g-1750's payload and reach?

The Universal Robots UR10g-1750 has a 1750 mm (68.9 in) reach, the longest in the g-Series, with an 8 kg (17.6 lb) payload and a 10 kg (22 lb) extended payload. It weighs 44.7 kg (98.5 lb) on a Ø204 mm footprint, repeats to ±0.08 mm, reaches 5 m/s at the tool center point and is rated IP65.

What is the Universal Robots g-Series?

The g-Series is Universal Robots' 7th-generation robot arm family, released in 2026 as part of the Gen 7 platform. It builds on the UR Series design and adds power, data and safety connections at the tool flange, so cameras, sensors and higher-power grippers connect without external cabling. The family is the UR10g-1750, UR17g-1300 and UR18g-950, with IP65 protection and an enclosed joint design.

Does the UR10g-1750 replace the UR8 Long?

Yes. Universal Robots lists the UR10g-1750 as the successor to the UR8 Long. It builds on the UR8 Long's precise linear motion and high-speed acceleration with the same 1750 mm reach, and adds 1 Gb Ethernet, 24/48 V power and safety-rated inputs at the tool flange. Universal Robots says the UR8 Long remains fully supported, with service, spare parts and software updates continuing.

What is built into the UR10g-1750's tool flange?

The UR10g-1750 tool flange has an M12 X-coded 1 Gb Ethernet port for cameras and sensors, an M8 power connector supplying 24 or 48 V (5 A peak, 3 A continuous), and an M8 I/O connector with digital I/O, a safety input, and analog inputs or RS-485. A force/torque sensor is built in. Universal Robots says M8 compatibility preserves existing tooling investments.

Which controller and software does the UR10g-1750 use, and does UR+ tooling work with it?

The UR10g-1750 runs PolyScope X on a Gen 7 CB7 Core controller (or the CB7 Core Compact versions), with the TP7 teach pendant and Gen 7 cables. An optional SP7 Smart Panel mounts at the tool for two-hand guiding. Universal Robots says Gen 7 is fully compatible with UR+, so certified UR+ peripherals, software and solutions are designed to work with the g-Series out of the box.

Who sells and supports the UR10g-1750 in New Jersey?

The Knotts Company in Berkeley Heights, NJ, a Universal Robots partner since 2017, sells and supports the Universal Robots UR10g-1750 for manufacturers in New Jersey, New York and Eastern Pennsylvania. Knotts can help you size the arm to your payload, reach and cell layout before you buy. Contact automate@knottsco.com or (908) 464-4800.
