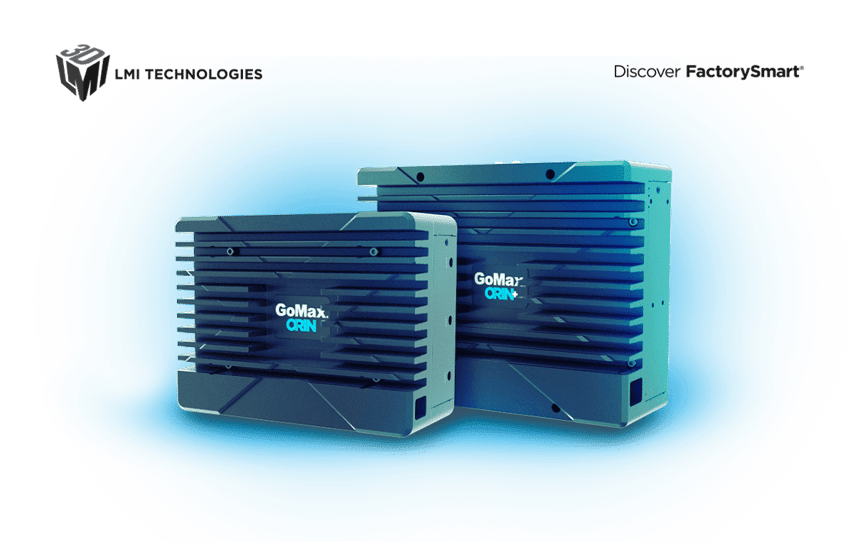

LMI Technolgies GoMax ORIN & ORIN+ Smart 3D Vision Accelerators

Helpful Resources

GoMax ORIN & ORIN+ 3D Smart Vision Accelerators Datasheet

Specs & Details

NEW GoMax ORIN Smart 3D Vision Accelerators

The new GoMax ORIN smart 3D vision accelerators provide higher levels of AI-ready performance to support increasingly demanding machine vision inspection requirements.

Easy to set up, power, and run using a web browser interface
Dedicated edge device with no additional drivers or OS maintenance
Deployed with Gocator snapshot and line confocal sensors to increase scan rates
Used in multi-sensor alignment installations to reduce cycle time
Delivers multi-core CPU and powerful GPU to accelerate both traditional and AI-based inspection tools in a compact, fanless format
Provides up to >2X faster acceleration than GoMax NX
Runs GoPxL IIoT Vision Inspection Software

GoMax ORIN

NVIDIA Module	Jetson Orin NX
CPU	8-core NVIDIA Arm® Cortex A78AE v8.2, 64-bit CPU 2MB L2 + 4MB L3
GPU	Ampere, 1024 CUDA cores, 32 Tensor cores
Memory	16 GB LPDDR5 onboard
Storage (non-volatile)	128 GB SSD
Mounting	DIN rail, Wall mounting
Ethernet Ports	5x GigE
Use Cases	Sensor and measurement tool acceleration, Anomaly Detector training

GoMax ORIN+

NVIDIA Module	Jetson AGX Orin
CPU	12-core NVIDIA Arm® Cortex A78AE v8.2, 64-bit CPU 3MB L2 + 6MB L3
GPU	Ampere, 1792 CUDA cores, 56 Tensor cores
Memory	32 GB LPDDR5 onboard
Storage (non-volatile)	512 GB SSD
Mounting	DIN rail, Wall mounting
Ethernet Ports	4x GigE
Use Cases	Sensor and measurement tool acceleration, demanding Anomaly Detector training

PLUG. PLAY. ACTIVATE.

FOR EASY ACCELERATION OF ENTIRE MULTI-SENSOR NETWORKS

Simply connect GoMax ORIN to any Gocator sensor and use the intuitive Gocator web browser-based interface to activate sensor acceleration. GoMax ORIN and ORIN+ provide multiple network interfaces that allow for easy acceleration of multi-sensor systems without the need for Ethernet switches.

SUPERCHARGED DATA PROCESSING POWER

FOR MINIMIZED CYCLE TIMES AND INCREASED OVERALL INSPECTION PERFORMANCE

GoMax ORIN and ORIN+ are compact, fanless, and easy-to-use smart embedded devices that enhance data processing power in real-time (including data generation, 3D measurement, and PLC/robot communication), minimizing cycle times and increasing overall inspection performance so you can achieve optimal results in heavy data processing applications.

SUPPORTS GOPXL ANOMALY DETECTOR

FOR POWERFUL AI-BASED PART AND SURFACE INSPECTION

GoPxL Anomaly Detector is LMI’s 3D defect detection solution that relies on traditional and AI-based tools in GoPxL to solve challenging applications in the production of parts for the automotive, food, building materials, tire, and many other industries. Users can train and deploy the solution on GoMax without relying on additional cloud or hardware-based resources for initial and subsequent model training.
