ROD 300/500 Laser Scanners

ROD 300 & 500 Series

ROD 300 and ROD 500 laser scanner series bring precise detection to manufacturing and logistics processes, including object detection, contour measurement, and AGV navigation.

The ROD 300 Series Laser Scanners are used for measurement tasks in production.

The ROD 500 Series Laser Scanners are used for Automated Guided Vehicle (AGV) navigation.

Technical Details

Highlights & Advantages

Both series laser scanners:

✔️Ensure manufacturing and logistics processes can be designed for maximum efficiency

✔️ Equipped with LiDAR technology (Light Detection and Ranging) - allow for contour measurement & navigation

✔️ Integrated window monitoring - support predictive maintenance & enables high system availability

✔️ Compact design of 80 x 80 x 80 mm

✔️ Crafted with aluminum and IP67 protection rating

✔️ Perfectly integrated into confined production environments ((tight enclosures, automation cells, etc.) & small automated guided vehicles (AGVs) operating in tight lanes.

✔️ High angular resolution of 0.025° - allow for measurement tasks in production to be carried out with the highest level of detail & production processes be implemented extremely efficiently (terms of resources)

✔️ High scanning rates with  frequency of 80 Hz - allow for fast-moving objects in intralogistics to be reliably detected (i.e. container inspections) letting continuous conveyors be automated with the highest possible throughput

 ✔️ Use in high & low temperature ranges: Whether for deep-freeze storage or applications with increased temperature requirements, such as in the battery manufacturing environment, the ROD 300/500 can be used from -30°C to +60°C.

✔️  Robust design: The new ROD 300/500 laser scanner has a robust design thanks to protection class IP 67, the high-quality aluminum base and the built-in 905 nm laser diode.

Applications

• Contour measurement in production

• Navigation of automated guided vehicles (AGV)

• Media control

• Contour detection in warehouse logistics

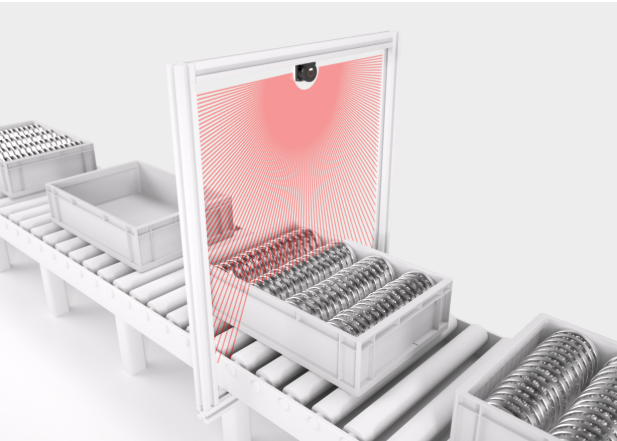

• Container checking
