VICTORY A Series Ram-Style Actuator

Preformance & Versality for Precise, Powerful & Clean Linear Motion

The VICTORY A is Precision Technology's multiple frame size, modular, screw-driven electric thrust cylinder (electro-mechanical ram style actuator) platform.

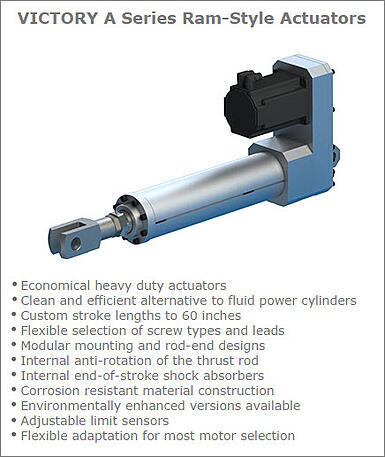

VictoryABenefitsIdeally suited as a clean and efficient hydraulic cylinder replacement, the VICTORY A Series is designed to offer equipment builders and end-users a rugged, flexible, low-maintenance linear actuator platform for thrust and speed control.

When combined with modern servo motors and controls, electromechanical actuation provides nearly infinite programmability, reduced set-up times, and improved control of speed, acceleration, deceleration, force and position. Whether as a fluid power retrofit, or in a new mechanical system, ram style actuators excel when there is a high concentration of airborne contaminants, when moving a load that pivots, or to apply force to an already externally supported load.

The VICTORY A Series benefits from Precision Technology's experience in providing actuator solutions for a wide variety of industrial, commercial, and defense applications over the past decade. Their focus and passion is electromechanical linear actuation. The resulting VICTORY A Series is the most flexible and durable ram-style actuator in our standard product portfolio.

The tubular design of the VICTORY A Series allows us to increase the sealing and connection strength between the outer housing components. When required, it also allows us greater flexibility in housing material selections to address the requirements of harsh or corrosive environments. Additionally, there is unparalleled flexibility in mounting features designed into the VICTORY A Series.

Precision-rolled ballscrew assemblies are incorporated into the baseline VICTORY A Series for smoothness and accuracy, and to support high-duty cycle requirements. ACME/Trapezoidal lead screw options are also available for their self-locking capability and value, when the duty cycle requirements are less. Planetary rollerscrew versions are available for increased load and life requirements in equivalent package sizes.



VICTORY A Series Food Grade Actuator

Robust, Watertight & Corrosion Resistant

These versions are specifically designed to meet the requirements of industries including food and beverage production, food packaging, and pharmaceutical equipment.

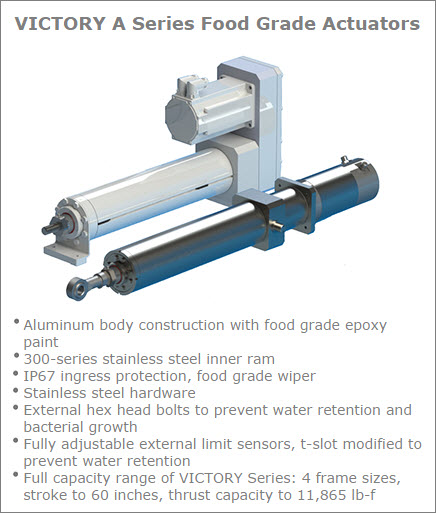

VictoryAFoodGradeThese industry applications are harsh on general purpose actuators due to the caustic cleaning agents and high pressure washdown regiments. The VICTORY A FoodGrade series models are engineered to withstand the environmental considerations.

The VICTORY A is our multiple frame size, modular, screw-driven electric thrust cylinder (electro-mechanical ram style actuator) platform. We currently offer four frame sizes, with stroke lengths up to 60 inches, and force capacity to 12,900 lb-f (57kN).

Ideally suited as a clean and efficient hydraulic cylinder replacement, the VICTORY A Series is designed to offer equipment builders and end-users a rugged, flexible, low-maintenance linear actuator platform for thrust and speed control.

One design does not fit every application and budget, so two basic models of VICTORY A FoodGrade Actuators have been developed.

Our economy FG1 model enhances our basic VICTORY A design with food duty epoxy paint on the aluminum body components, FDA compliant seals and grease, and stainless steel inner ram (thrust rod), rod ends, and hardware.

For a full stainless steel exterior, step up to the FG2 version. Enhancement include a body design to remove corners, seams and crevices where bacteria can collect, and internal limit sensors.

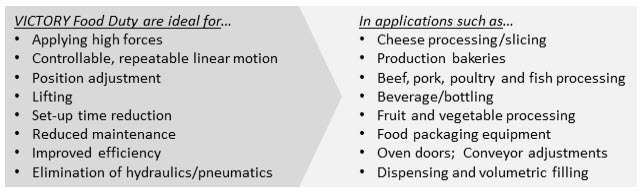

VictoryFoodGradeListImage

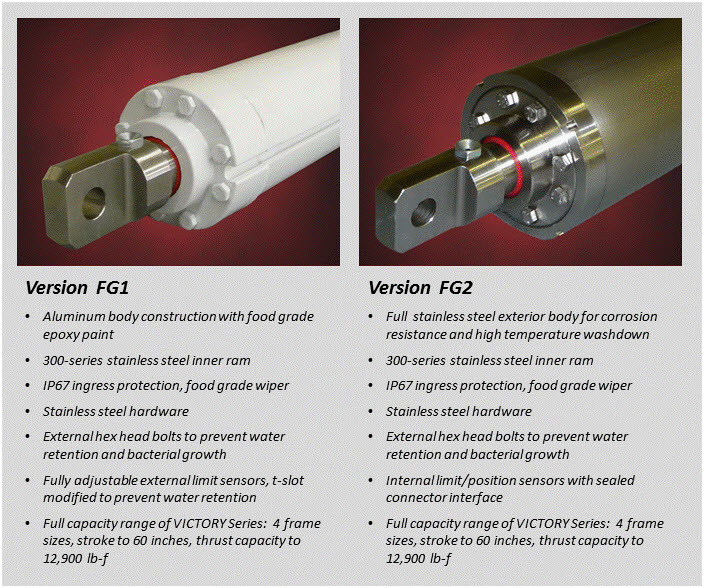

FoodGrade1

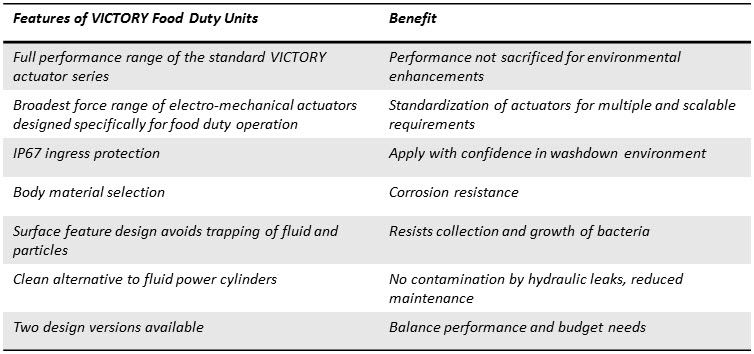

FoodGrade2
