SensoPart is a leading manufacturer of sensors and image processing for factory automation.  Image processing with vision sensors can transform your manufacturing into a digital factory.

VISOR^® vision sensors for image processing

Hardware + Software = VISOR^®

High-performance smart camera fitted in a compact and light-weight housing forms the heart of VISOR^® vision sensors.  Solutions such as a target laser for simple mechanical alignment or motorized focus for automatic adjustment to your individual operating distance.

The hardware is optimally enhanced by the VISOR^® software that enables the set up of applications in a few simple steps and the adjustment of process parameters. The process can be continuously monitored.

The VISOR^® vision sensor comes with diverse resolutions of up to 5 megapixels and 3 different fields of view from narrow to wide).  Special applications allow the additional installation of an external lens if necessary.

Equipped with a universal interface for installation in your machine, this vision sensor is facilitated by integrated standardized transmission protocols (PROFINET, Ethernet/IP).

SensoPart offers the VISOR^® vision sensor with a package of integrated detectors and functions tailored to the application:

• Standard: To solve simple image processing tasks
• Advanced: An extended scope of functions for more challenging applications
• Professional: The complete detector package suited to even very complex tasks

• Perfectly in tune: A combination of sophisticated hardware and easily configurable software
• Connectivity: Comprehensive protocols (e.g. PROFINET, Ethernet/IP) for seamless integration into your environment
• Flexibility: One of the most extensive vision sensor families on the market offering solutions tailored to your applications
• Scalability: Select your VISOR^®  to suit to your own requirements.

VISOR^® Allround

Object detection in color + identification in one device!

The Allround device combines the functions of the object sensor (calibration, pattern matching, contour, calliper, BLOB) with the powerful tools of the code reader (barcode, data matrix and optical character recognition).

When feeding parts in correct alignment or positioning components, additional data matrix codes for example can now also be read. With a resolution of up to 5 megapixel even the smallest details are reliably detected and evaluated.

In addition to the monochrome version, the VISOR^® Allround is also available as a color version with up to 5 megapixel. Additional “Detectors” are available for color evaluation. Even the subtlest shade variation can be reliably detected.  Relevant object colors are simply taught-in with a push of a button or set graphically for each channel in the color space. The authorized color tolerances are defined by the user.

Scope of detectors according to the application:

• Advanced: Color detection and object identification within in one device
• Professional: To also solve robotics applications

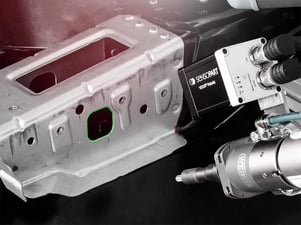

VISOR^® Robotic

Vision sensor for robotics applications

•  - Target Mark technology provides 3D object poses in no time
•  - Simplified installation through 3D grip point transformation

VISOR^®  Robotic demonstrates its outstanding ability as a easy-to-use robotics solution as a vision sensor that solves a variety of automation tasks. It is designed with integrated and standardized interfaces that can be easily incorporated in existing installations and systems through different calibration methods and flexible data structures.  It is also suited to a diverse range of applications.

Scope of detectors according to the application:

• Advanced: To solve common image-guided robotics applications
• Professional: Extended scope of functions for identification, enhanced calibration methods and localization in 3D

Reliable feeding of material ....

The position of components supplied in a tray can vary so strongly that robot guidance is necessary.

• • • Cost advantage due to use of universal tray
    • Precise feeding, without mechanical alignment
    • Easy installation of vision sensor through slimline design and functions tailored to the application

Precise processing of components ....

The VISOR^® Robotic identifies the exact position of the housing.  Offset data is used to correct the robot’s trajectory.

• • • Stable process despite varying positions of parts being fed
    • Added flexibility with increasing number/diversity of variants
    • Reduced programming due to calculation of 3D destination position for robot by VISOR^® Robotic.

Precision for mobile workstations ....

Target Mark technology enables easy identification and precise referencing of your mobile work stations.

• • • High availability due to robots’ implementation of workstation safety zones
    • Fast procedures due to compensation of 3D offset using 2D vision sensor with image capture

Applications include:

Classification - Advanced AI-Powered Classification

Detection - Reliable presence detection

Distance measurement - Simple solutions for diverse measuring tasks

Identification - Reliable differentiation and tracking of objects

Inspection - Reliable detection in every situation

Positioning - Reliable detection of any position
