IAI TTA Series

TTA Robots Series

Improved Tabletop Robot for Cell Production Applications, Featuring Significantly Higher Payload, Maximum Speed and Rigidity!

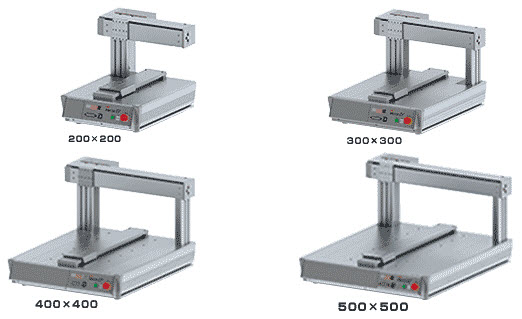

TTA_robot_sizes

Features

  1. Significantly higher payload & maximum speed
  2. Stores much more programs & positions
    • The larger memory lets you store much more programs and positions.
    • The additional data recovery function makes sure the original data can be restored should writing to a FLASH drive fails due to a power failure.
  3. 3 Times as many I/O Points as conventional models
    • When the standard I/O slot isn't enough, up to two additional expansion I/O slots can be installed
  4. More Variations
    • Four operating ranges are available to choose from
    • The 3-axis specification is available in two types of Z-axis strokes:
      100mm and 150mm.
    • You can select a model ideal for the size of your work part.
    • Additional options let you change the Y-axis height and position.
  5. Greater bending rigidity is achieved by integrating the structure of the Y-axis base with the mounting bracket
  6. Labyrinth structure to suppress intrusion of foreign matter into X-axis
    • The X-axis opening is structured as a labyrinth in order to make it difficult for foreign matter dropping onto the actuator (such as screws, molten metal, dust, etc.) to enter the X-axis. This expands the types of work environment supported.
